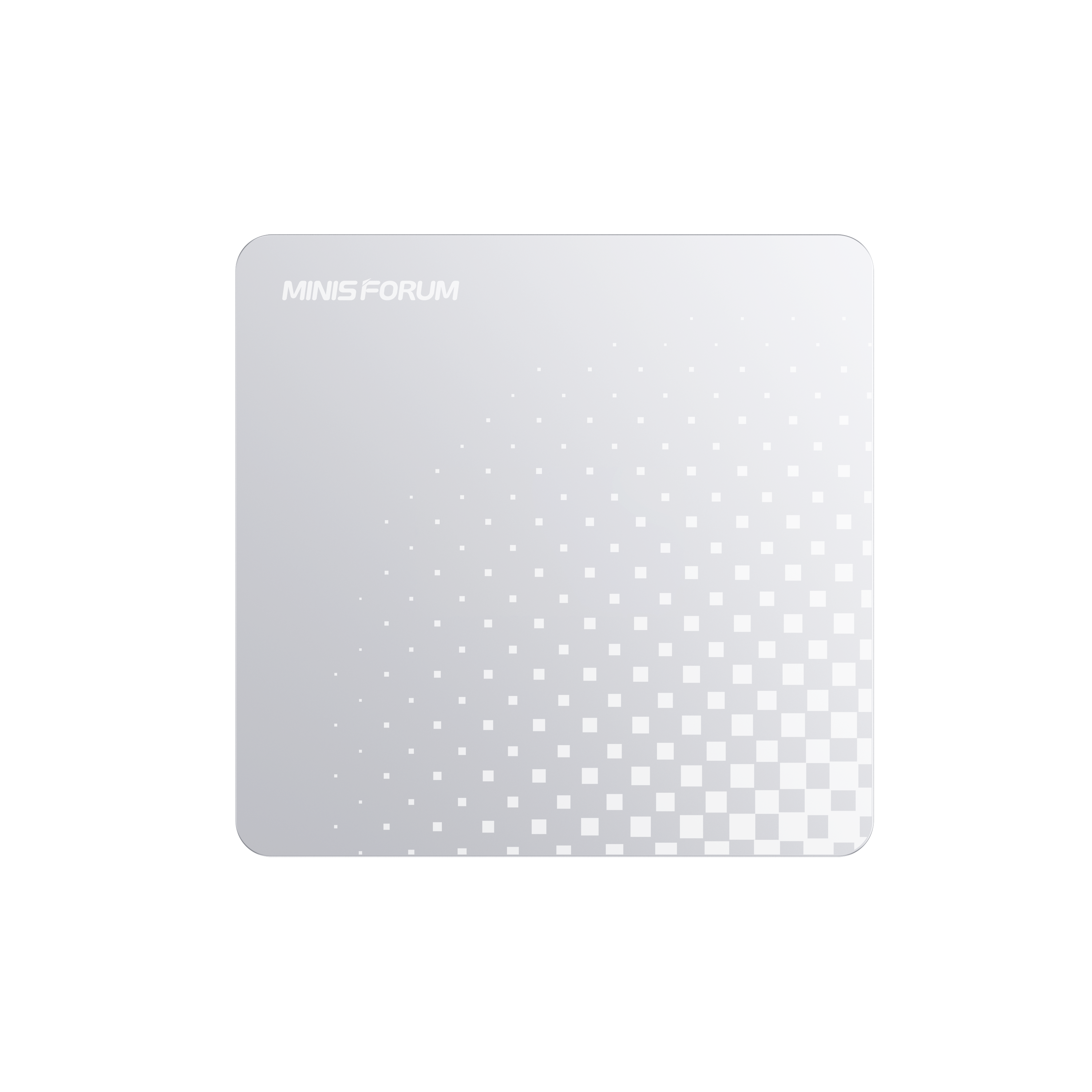

MINISFORUM Elite M1 Lite-125U
For bulk purchase discounts, please contact au@minisforum.com
Streamlined Work
One Device Does It All
Maximize your workspace with a true one-cable setup via USB4 (PD IN 65–100W / PD OUT 15W). Keep workflows side-by-side with triple independent displays via HDMI 2.1, DP 1.4, and USB4. Less clutter, cleaner routing, and seamless multitasking.
USB4
One-Cable Desk Setup

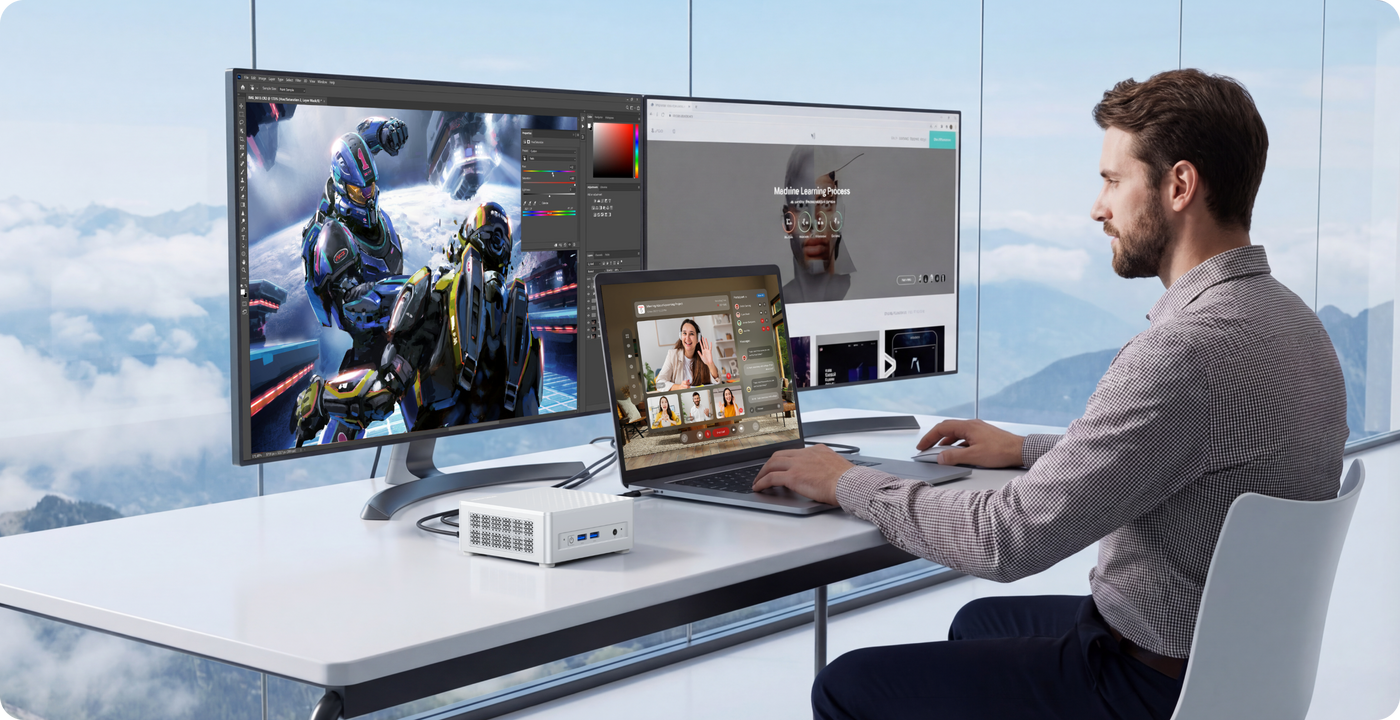

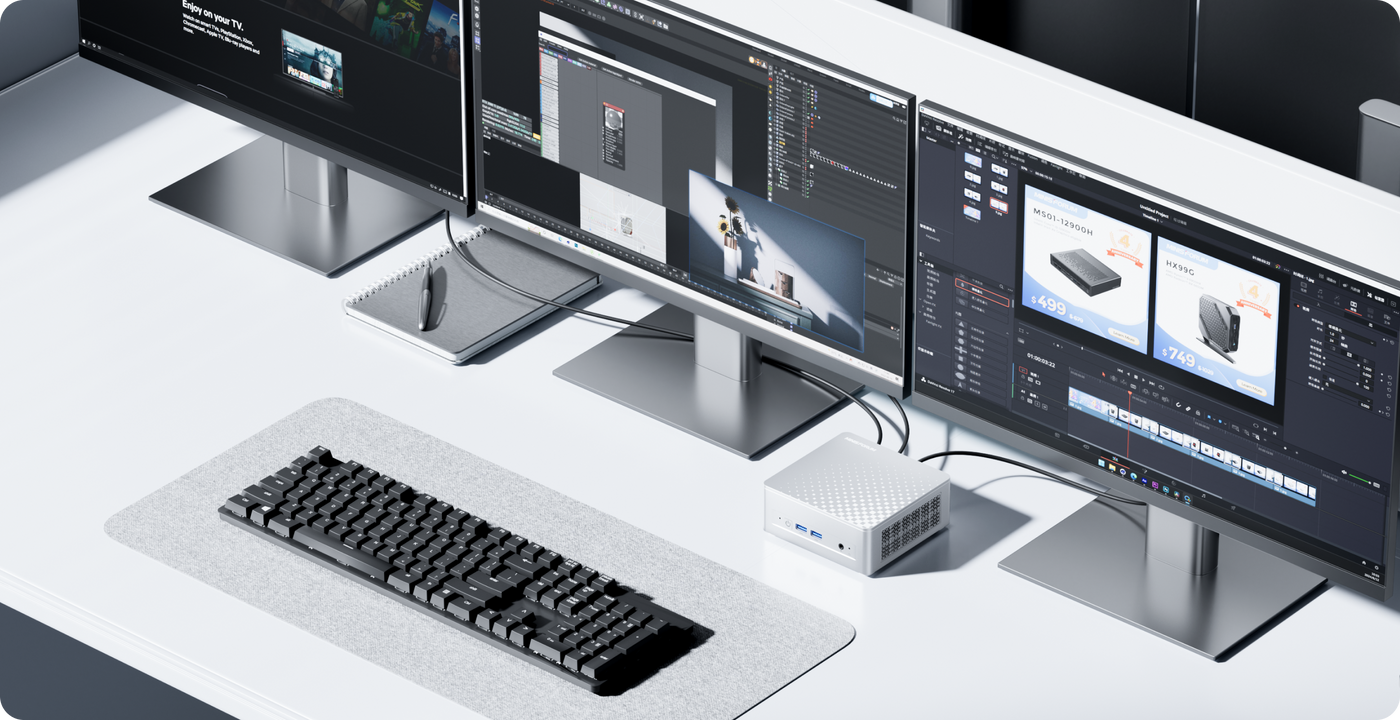

Triple-Display
Productivity
<45dB
Quiet & Stable

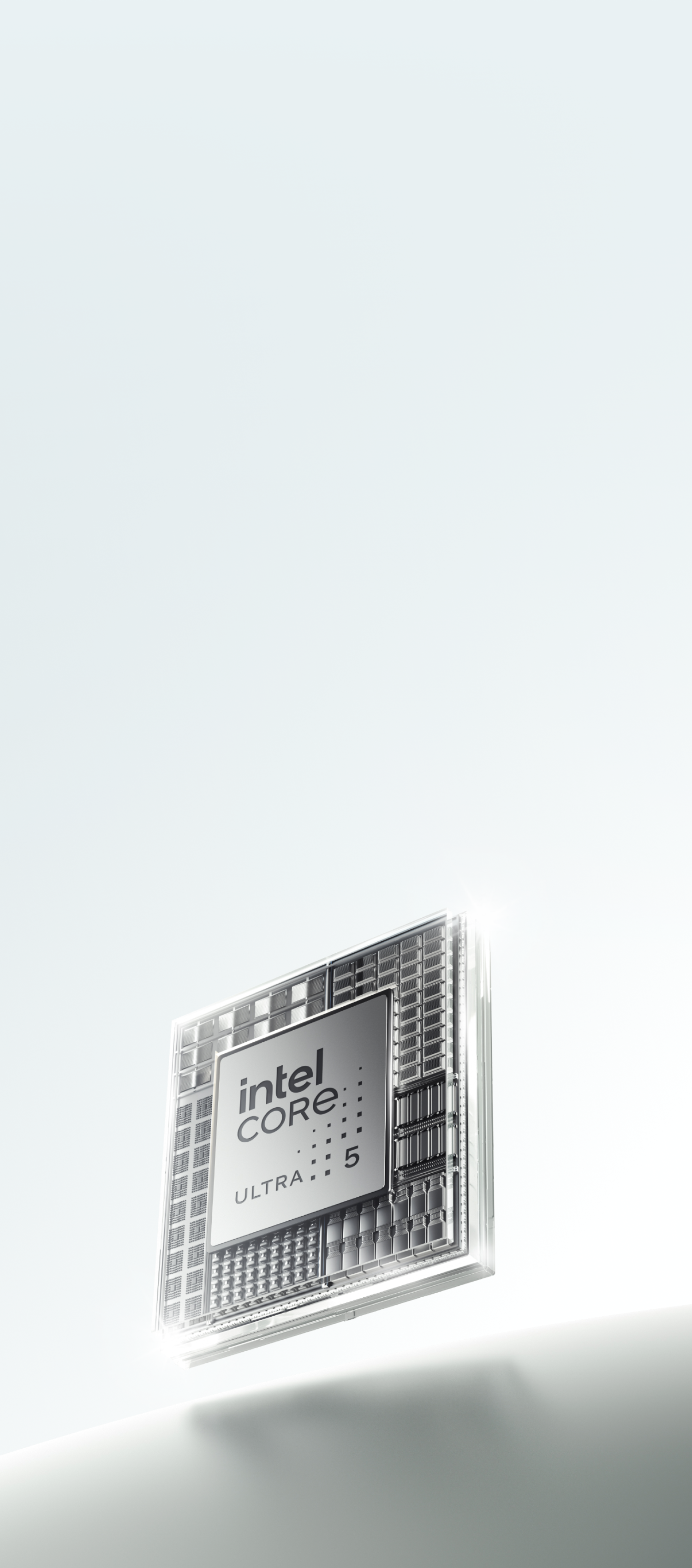

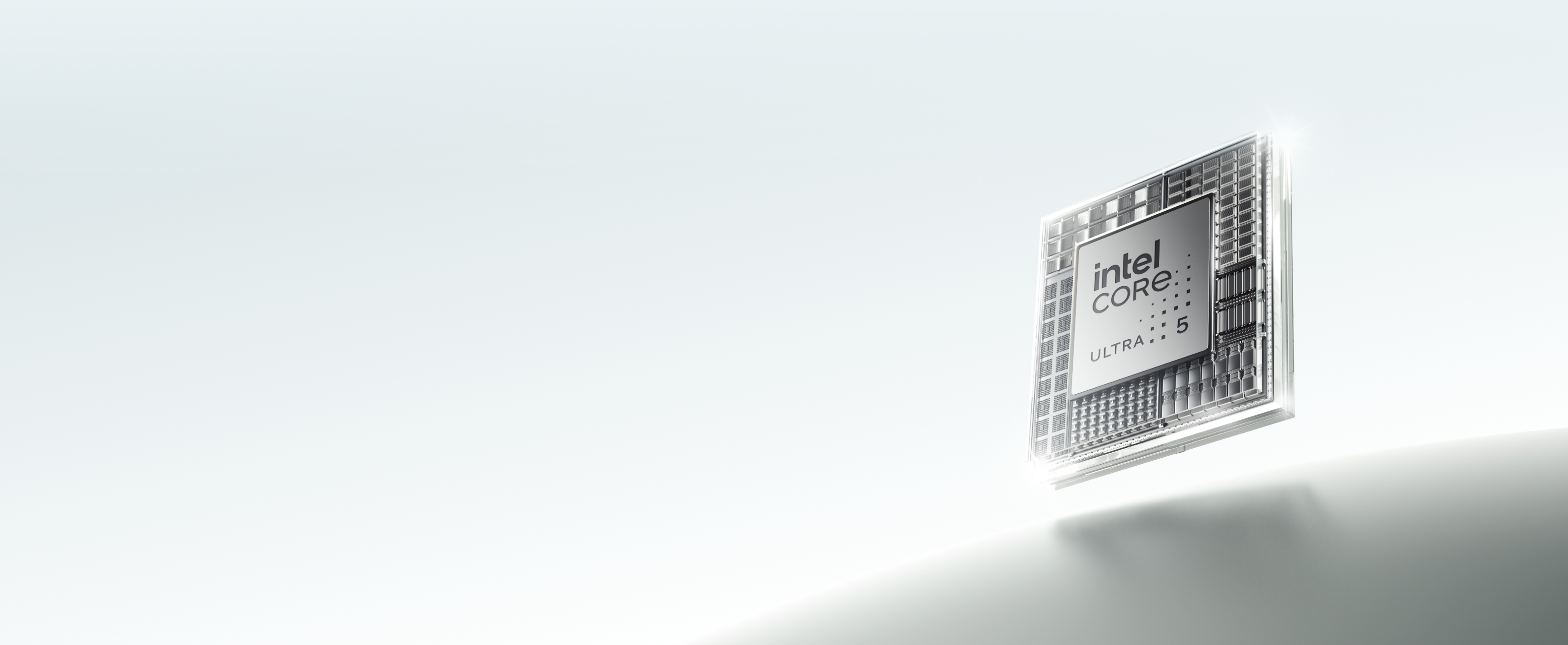

Core Ultra 5 125U
Capable Performance, Smarter Budget
Built for real productivity loads - tabs, Office, video calls, light creation, and nonstop multitasking. Core Ultra 5 125U with 12C/14T, 1.3GHz base and up to 4.3GHz turbo, plus PL1/PL2 35W tuning, focuses on steady everyday smoothness - not short-lived benchmark bursts.
12
Core
14 Threads
4.3
GHz
Max Turbo Frequency
35
W
Balanced TDP

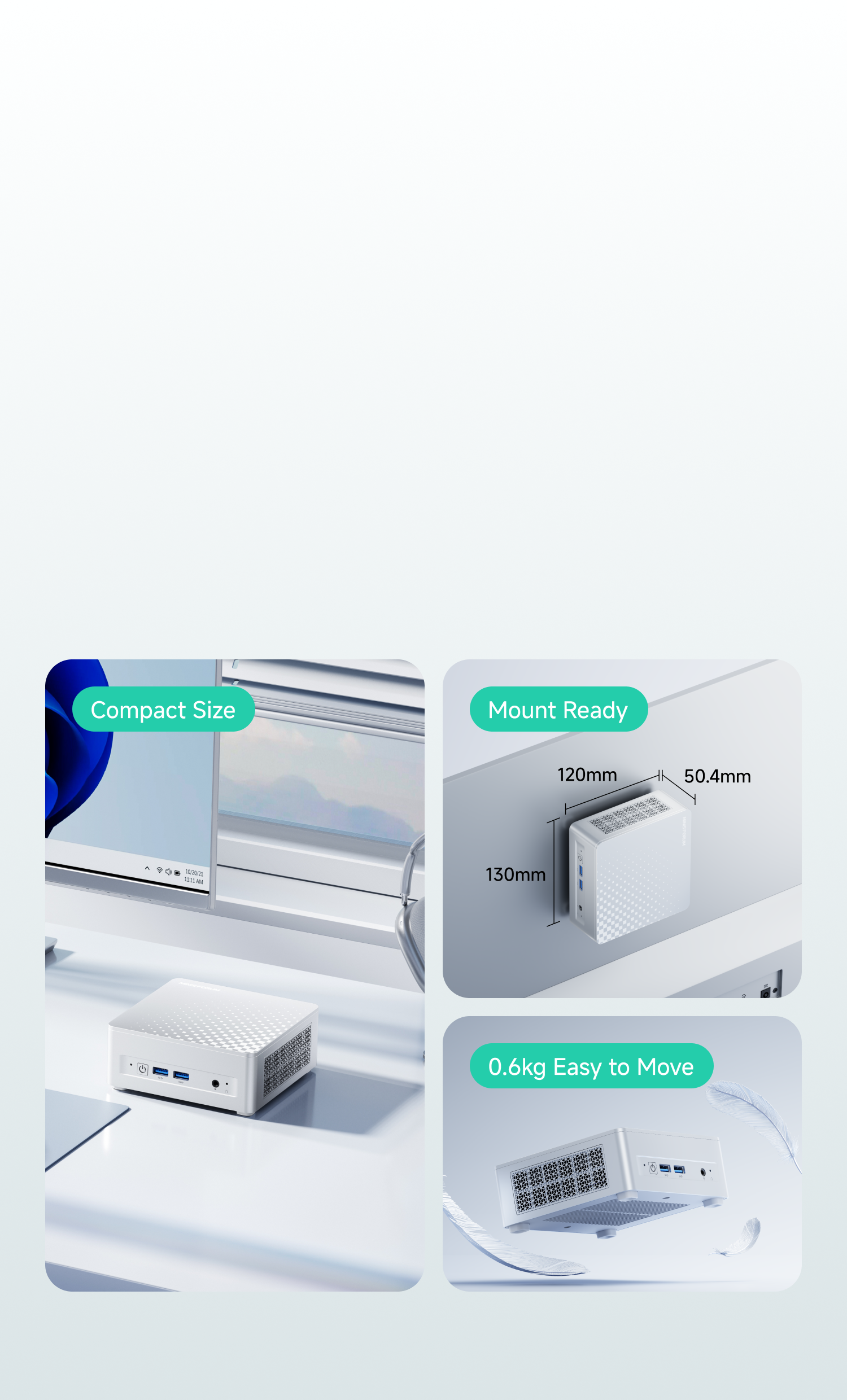

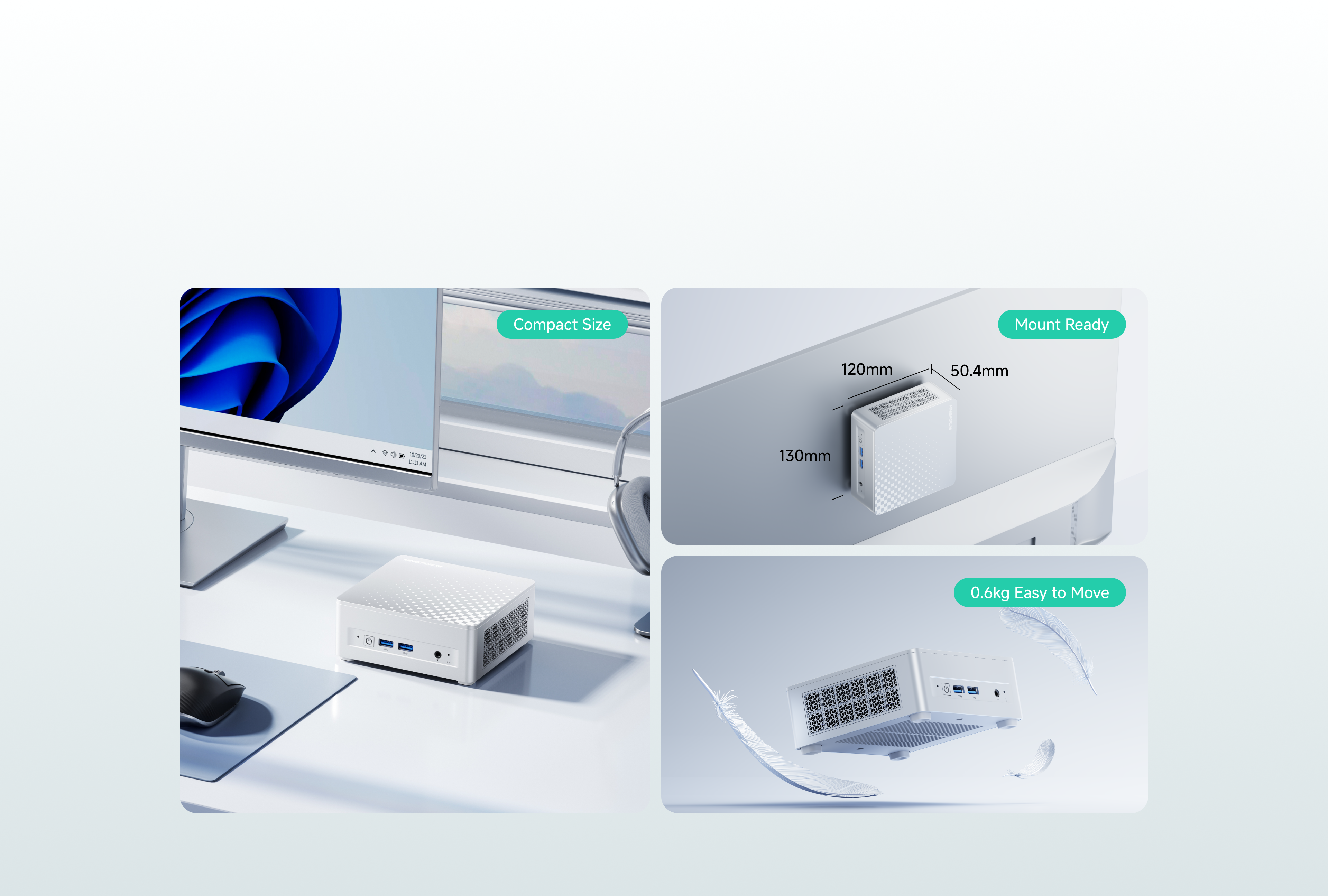

Palm-Sized Mini PC
Get Your Desk Back
Productivity-friendly For you: less clutter, cleaner routing, easier setup. At just 0.6kg, it fits desks, dorms, and meeting rooms effortlessly. Mount it behind your monitor to completely free up your desk space. Plus, Windows 11 Pro means you’re ready to work right out of the box.

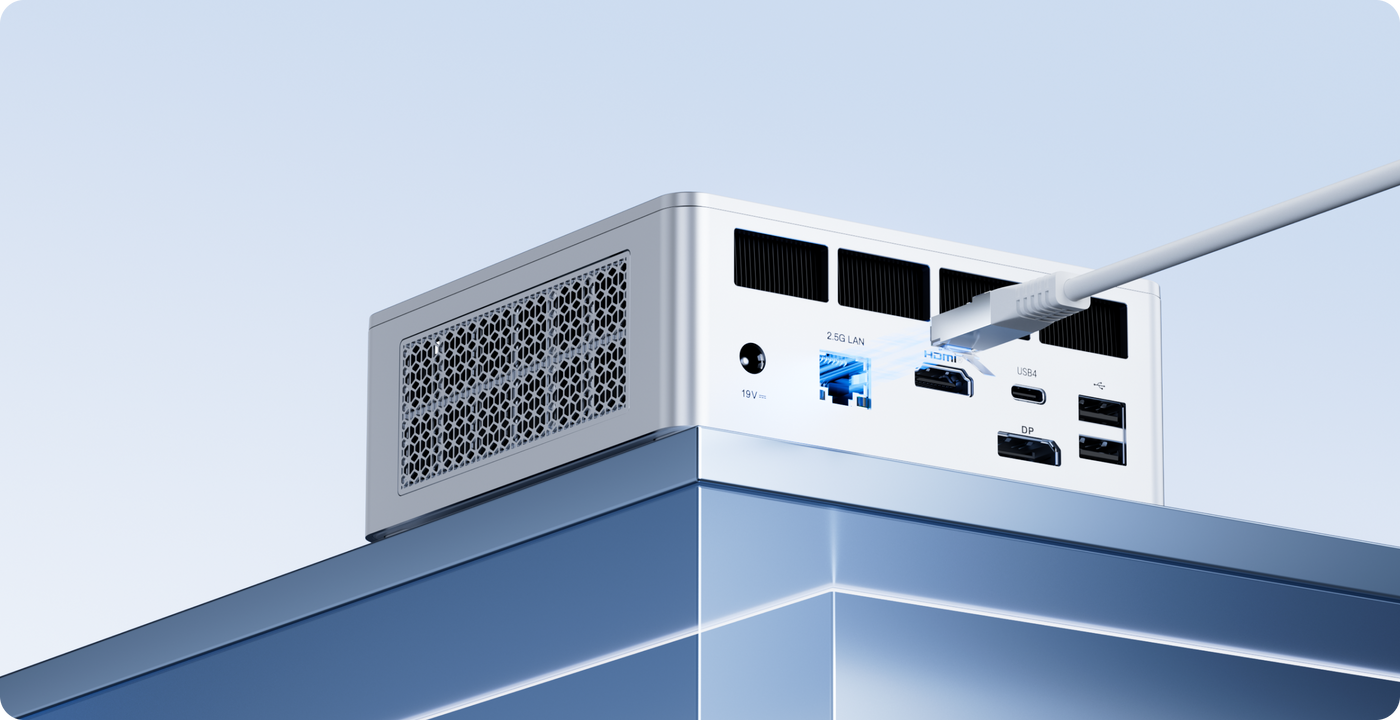

Full Display Outputs &USB4
Connectivity That Keeps Up

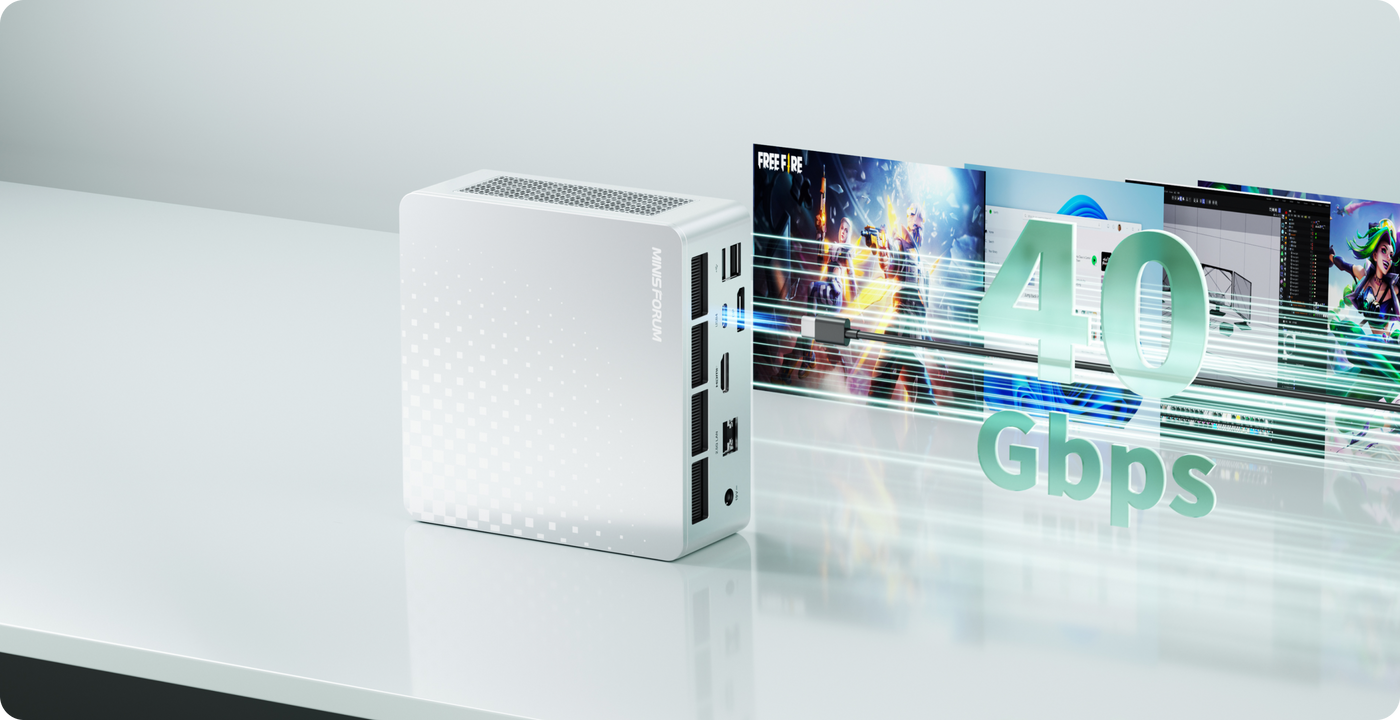

Outputs include HDMI 2.1 TMDS (4K@60), DP 1.4 (up to 8K@60 / 4K@144), and USB4 (up to 8K@60 / 4K@144); USB4 40Gbps keeps docks and fast devices responsive; 2.5GbE i226-V delivers steadier calls and quicker LAN transfers,display, expansion, and network all covered.

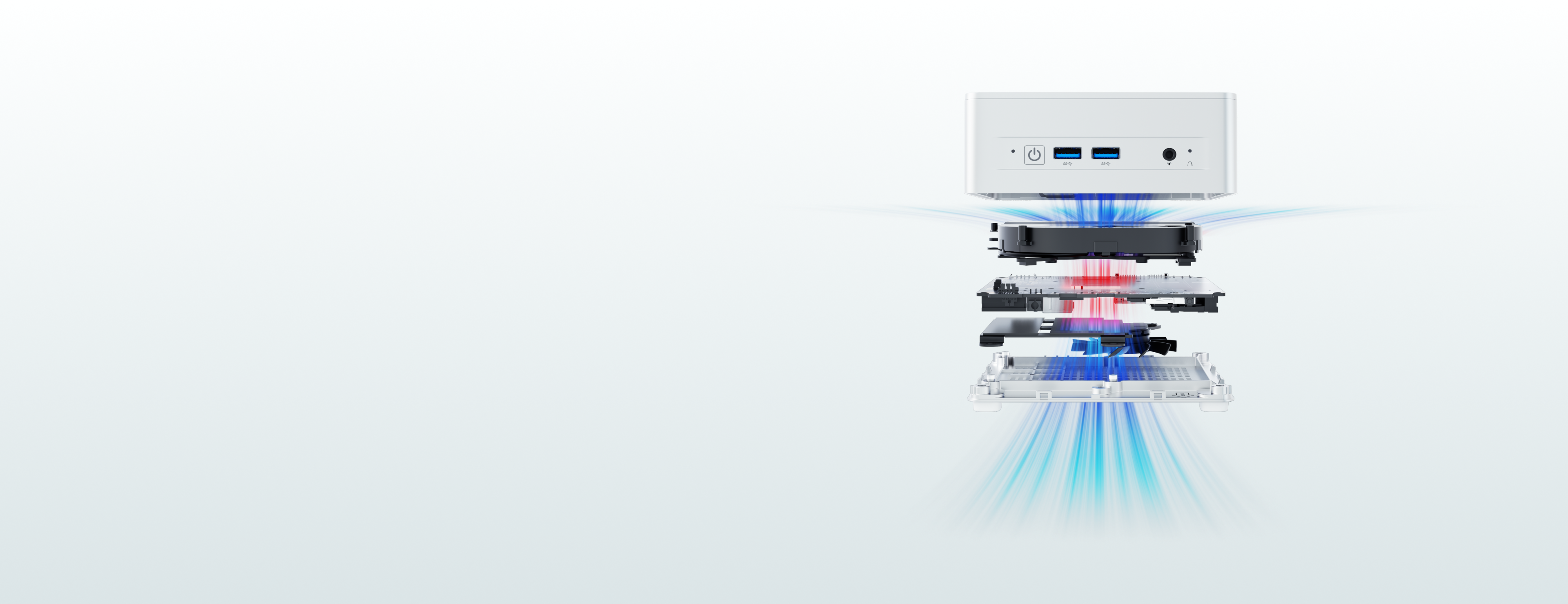

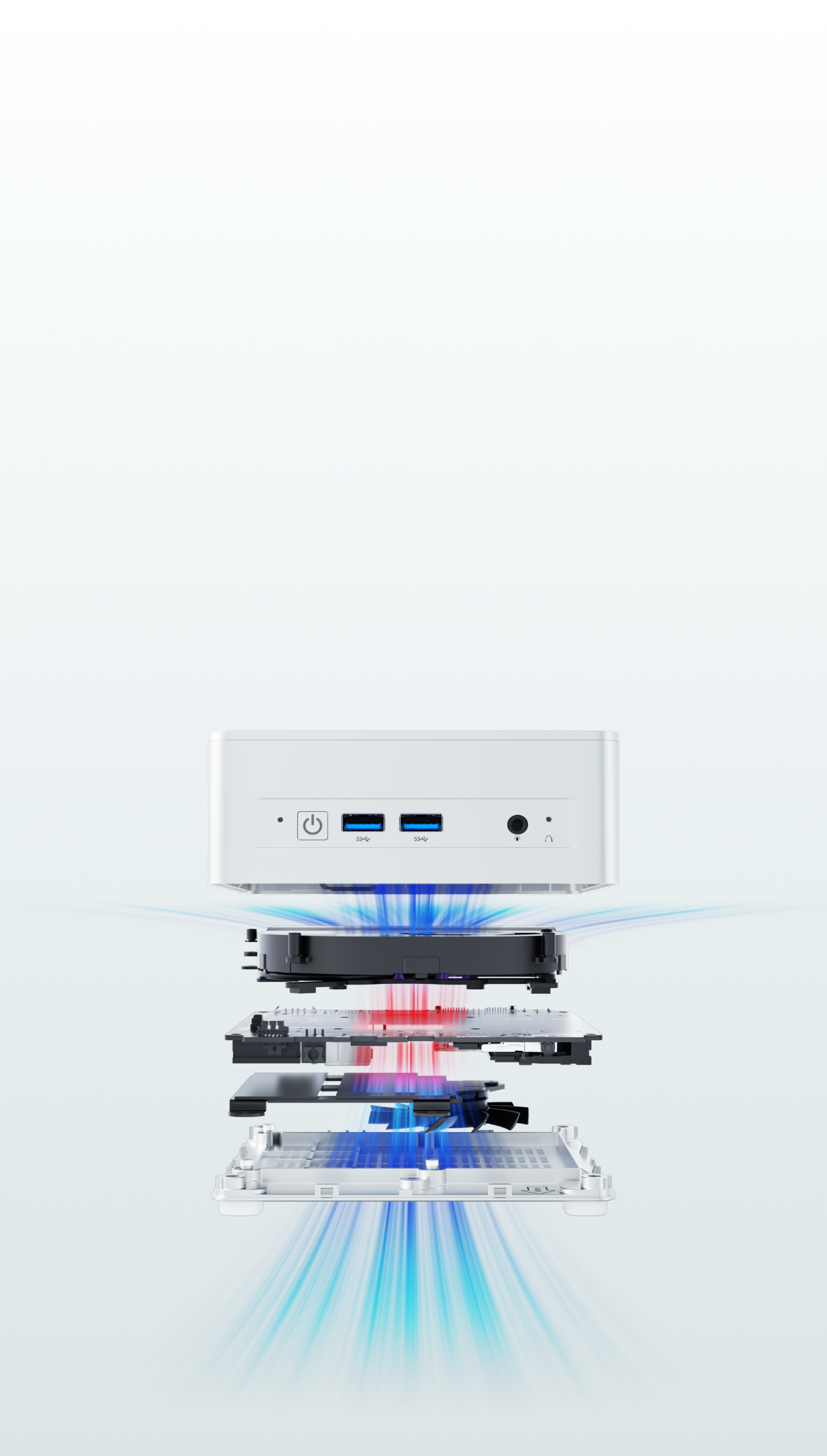

Low-Power Quiet Cooling
Built for Long, Stable Runs
Engineered for long uptime: quieter focus, steadier output, more confidence.
With phase-change/PCM cooling + a blower fan, acoustics stay <45dB in Performance/Balance; combined with PL1/PL2 35W tuning, it prioritizes sustained stability over short-lived peak bursts.
PCM Cooling
Phase-Change Heat Dissipation
<45dB
Acoustic Control

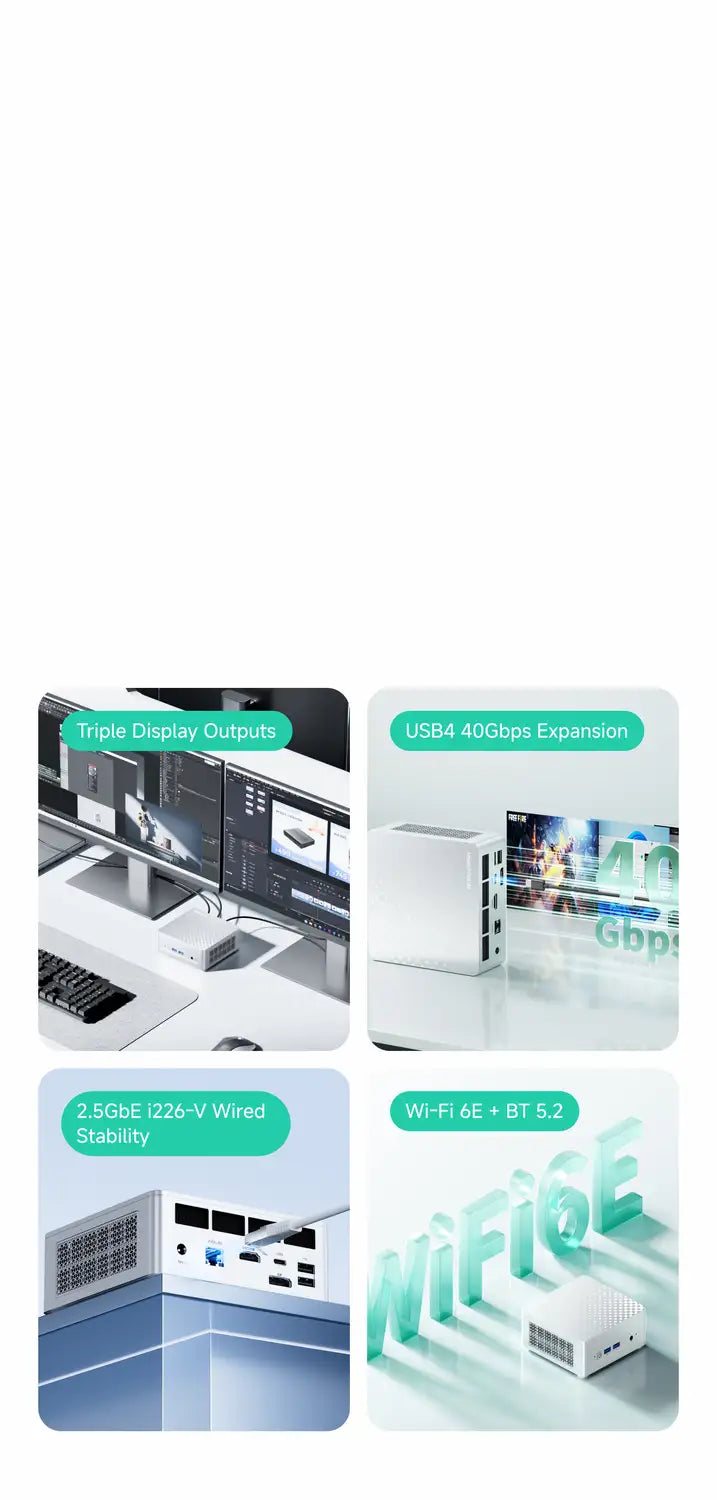

Full Connectivity
Zero Compromise
Display, expansion, and network—fully covered: HDMI 2.1 (4K@60) + DP 1.4 (up to 8K@60 / 4K@144) + USB4 (up to 8K@60 / 4K@144) for a smoother triple-display workflow. With USB4 40Gbps + Alt-DP + PD IN 65–100W + PD OUT 15W, one cable handles both power and connectivity—plus 2.5GbE i226-V keeps calls steadier and LAN transfers faster.
Packing List
M1 Lite
AC Power Adapter
Power Cord
HDMI™ Cable
Mounting Screw Set
Mini PC Suspension Stand
User Manual
Elite M1 Lite-125U Specifiction
Processor： Core Ultra 5 125U
Total Cores： 12
Total Threads： 14
Frequency： 1.3 GHz
Max Turbo Frequency：4.3 GHz
TDP (Balance Mode)：PL1: 35W / PL2: 35W
TDP (Silent Mode)：N/A
Graphics Cards： Intel® Graphics
NPU Performance：N/A
Memery Type： DDR5 (SO-DIMM х 2)
Optional SKU DDR Capacity：0/16/32GB
Max Speed Support： 5600Mhz (Dual channels)
Max Capacity Support： 96GB
Storage Type：2× M.2 2280 PCIe4.0 SSD
Optional SKU SSD Capacity： 512G/1TB
CPU Cooling Type： Phase Change / PCM
CPU Fan Type： Blower Fan
MAX Speed (CPU Fan)：5000RPM
Noise (Performance Mode)：<45dB
Noise (Balance Mode)：<45dB
Noise (Silent Mode)： N/A

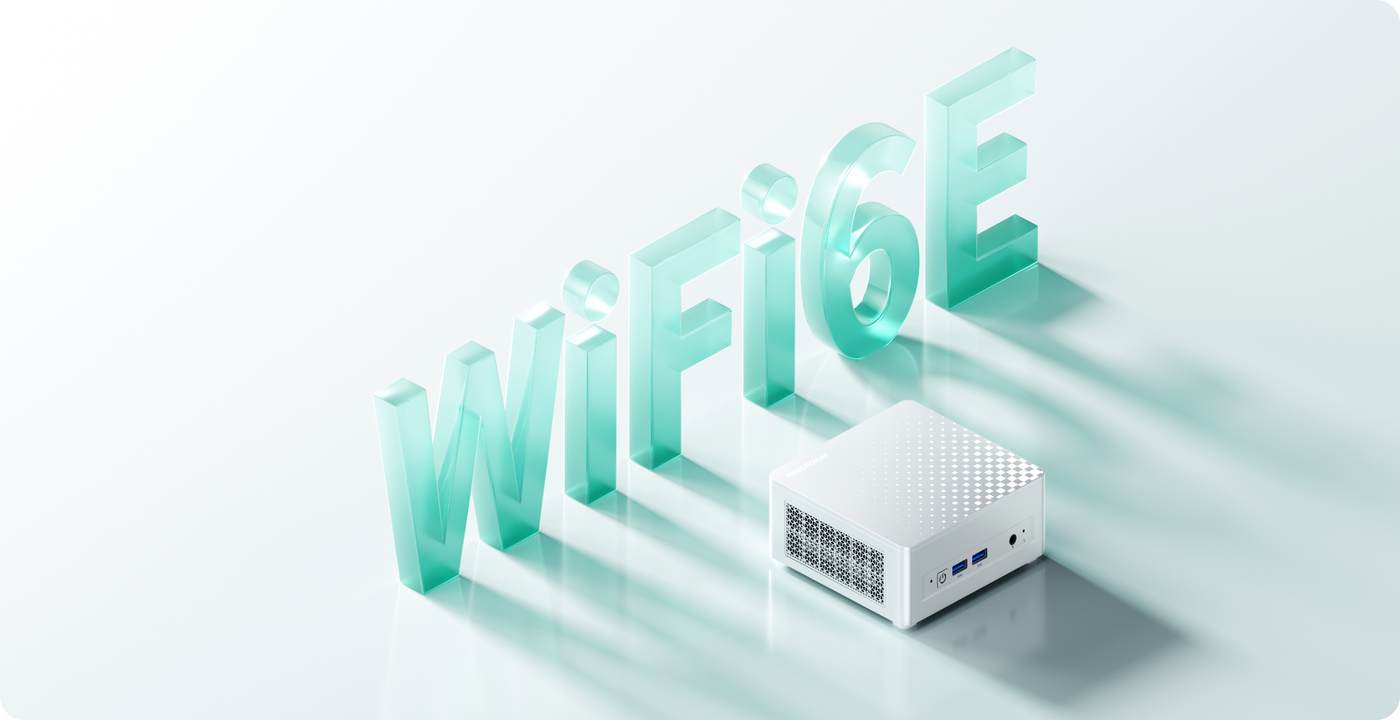

M.2 2230 E-Key WiFi/BT Combo Module (PCIe Only)： Wi-Fi 6E, Bluetooth® 5.2 (MT7902)
2.5Gigabit LAN (RJ45) × 1 (Module: i226-v)
1× HDMI 2.1 TMDS (Up to 4K@60Hz)
1× DP 1.4 (Up to 8K@60Hz/4K@144Hz)
1× USB4 (Up to 8K@60Hz/4K@144Hz)
1× HDMI®
1× DP
1× 3.5mm Combo Jack (TRRS)
1× 3.5mm Combo Jack (TRRS)

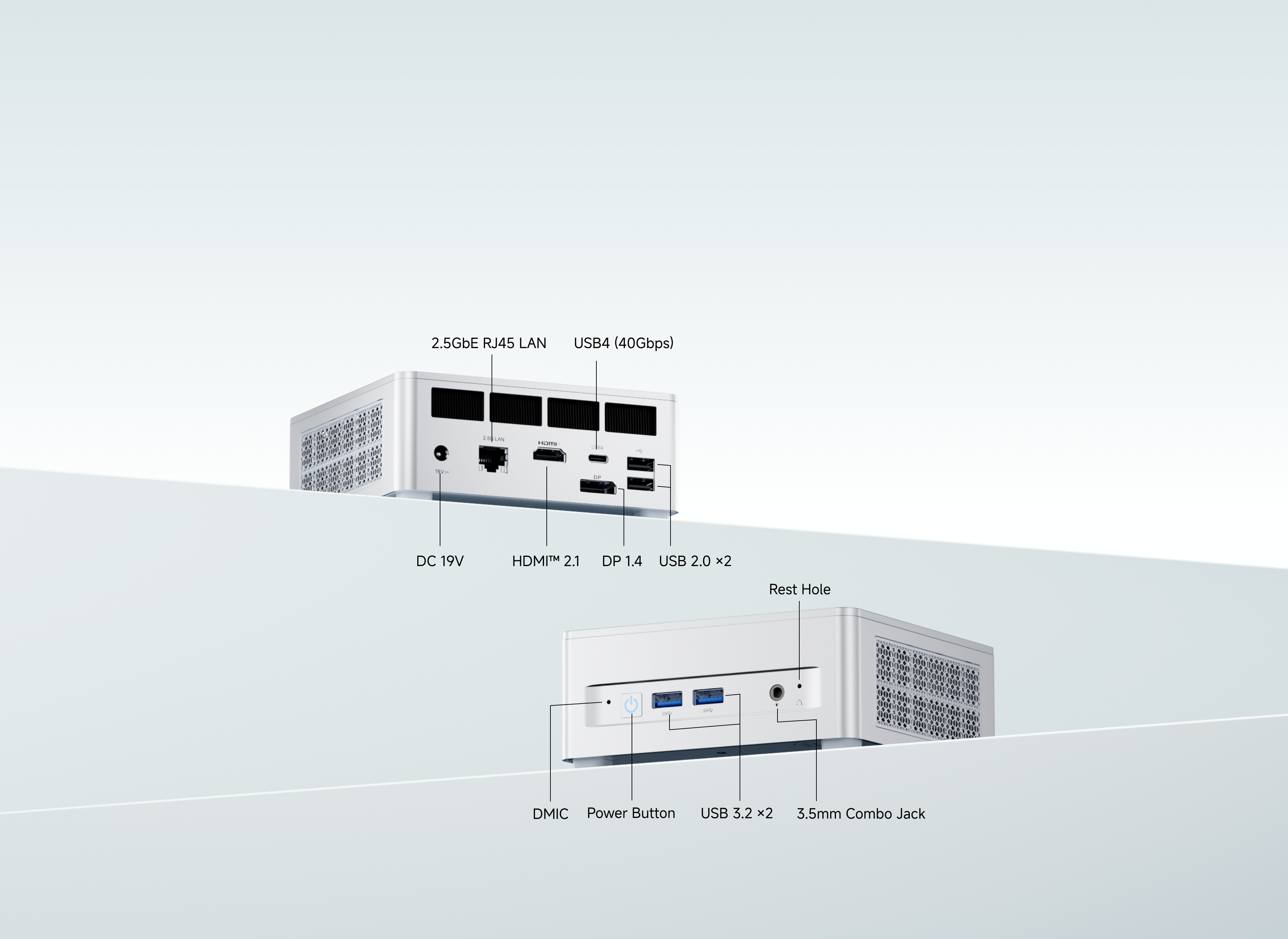

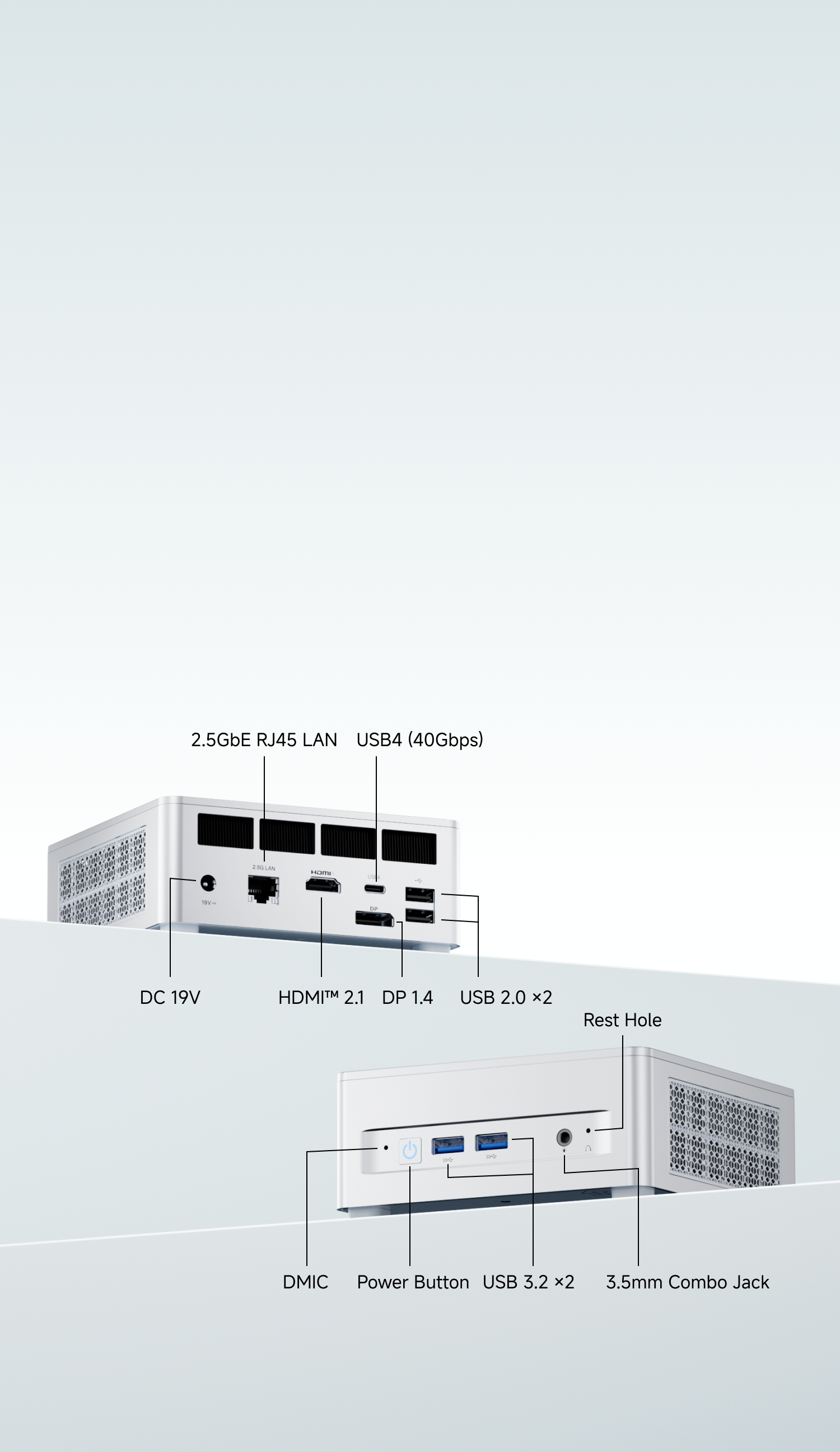

Front:
2× USB_Type A (USB 3.2 Gen2, 10G)
1× Audio Jack (3.5mm combo jack)
1× Reset Hole

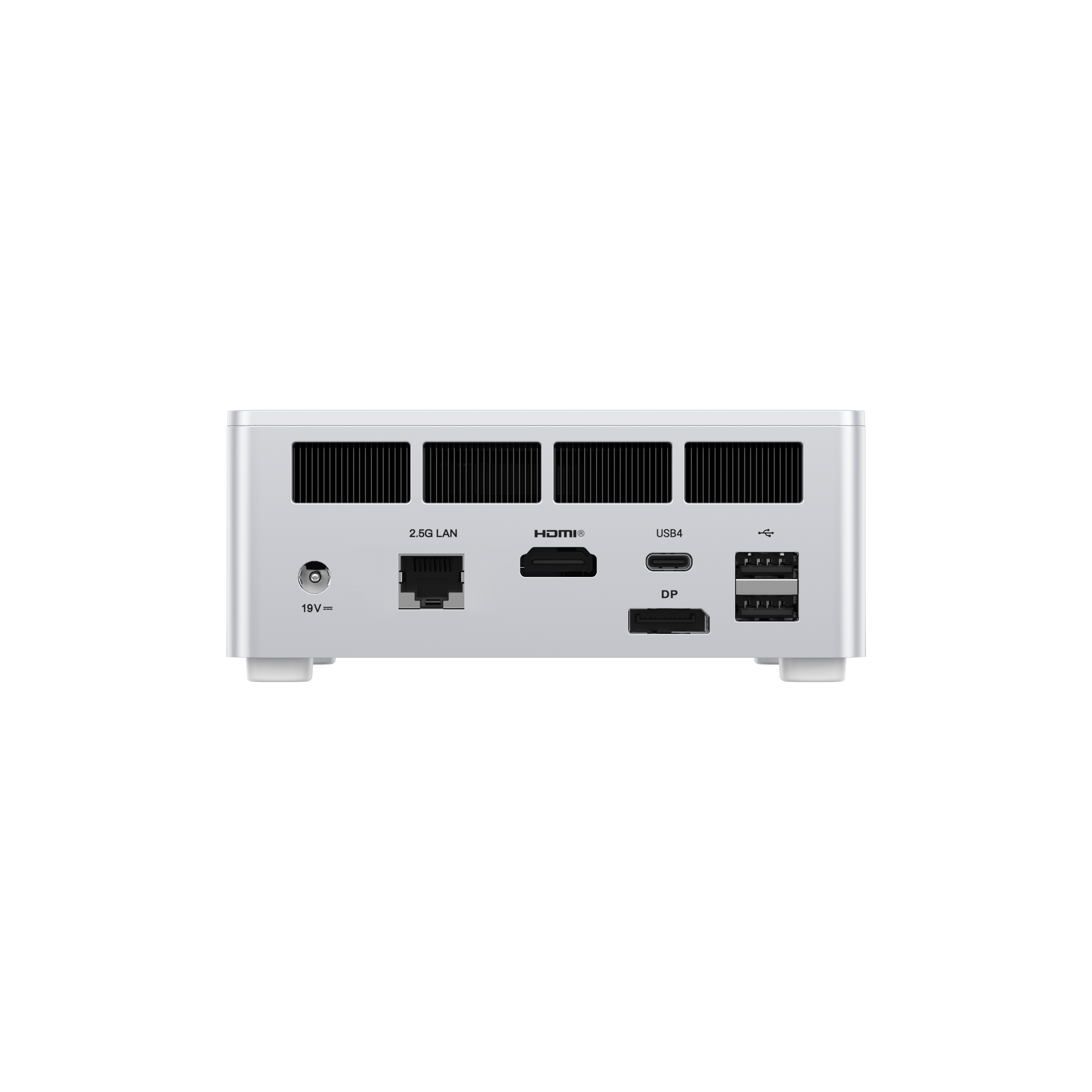

Rear:
1× DC-IN Jack (DC 5.5*2.5 19V 6.32A)
1× Type C_USB4 (40Gbps+Alt DP+PD IN 65-100W+PD OUT 15W)
2× USB_Type A (USB 2.0)
1× 2.5G LAN (RJ45, I226-V)
1× DP 1.4
1× HDMI™ 2.1
1× Power Button
1× Reset Hole
Other
Support
19V 4.73A 90W
Windows11 Pro
130 × 120 × 50.4 mm
0.6 kg
