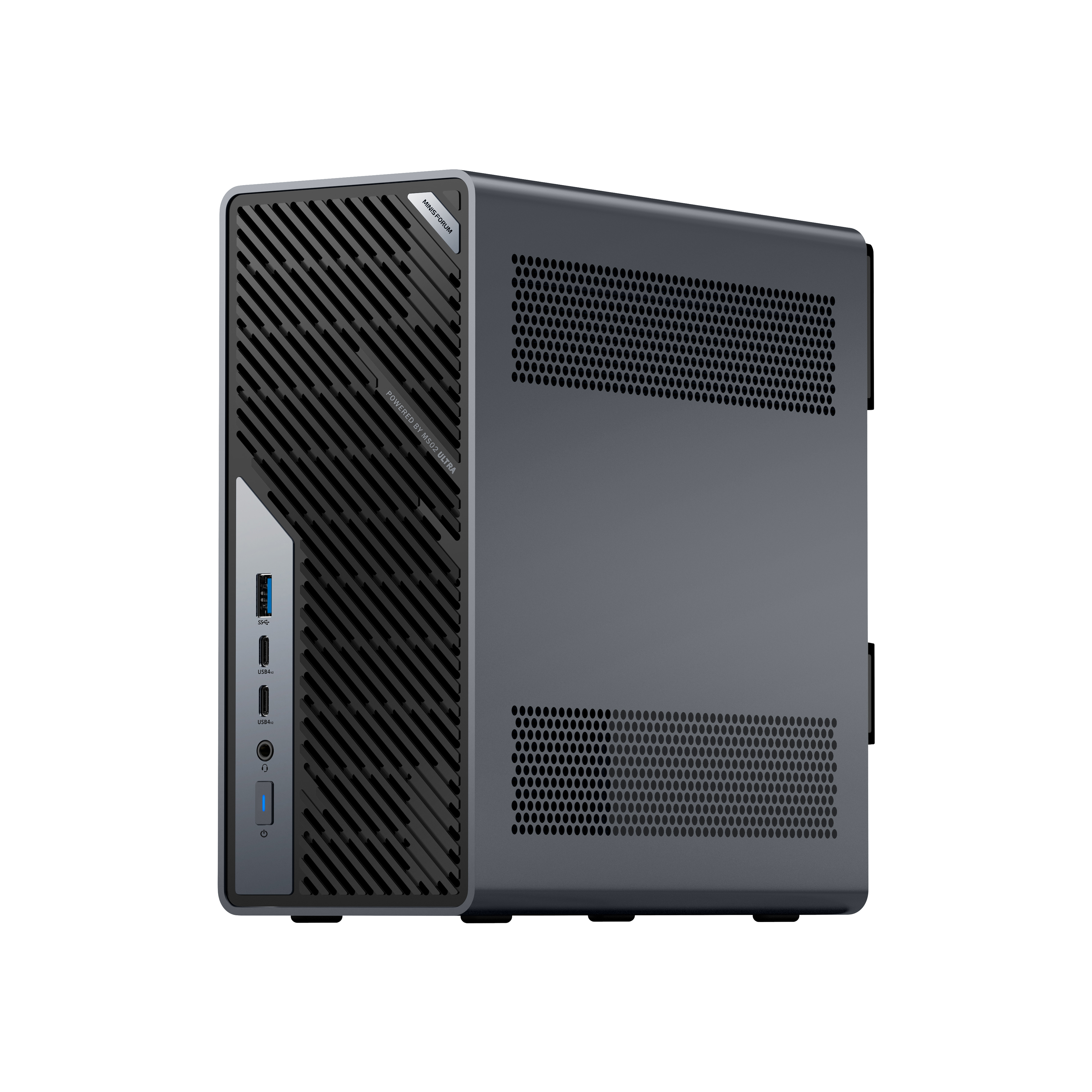

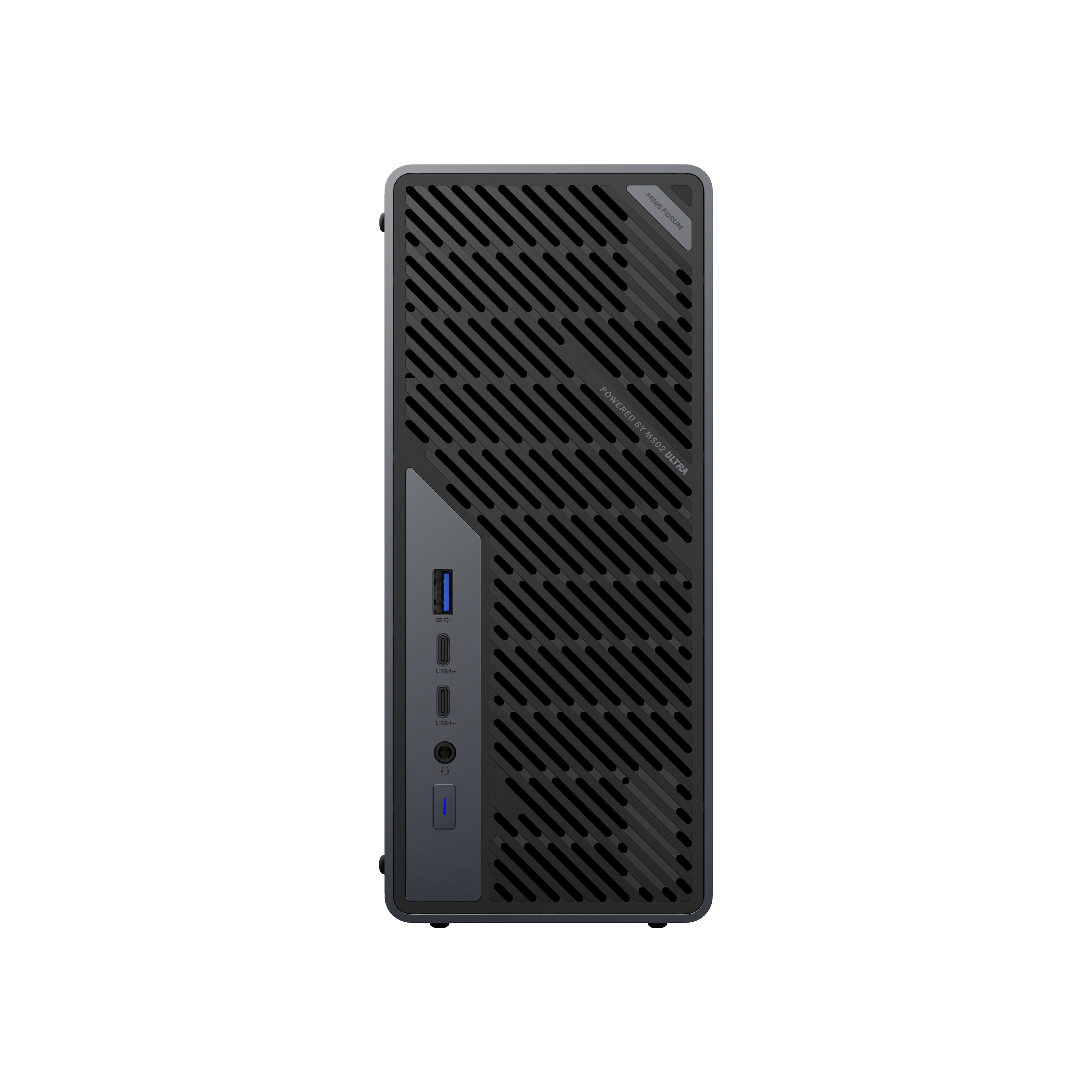

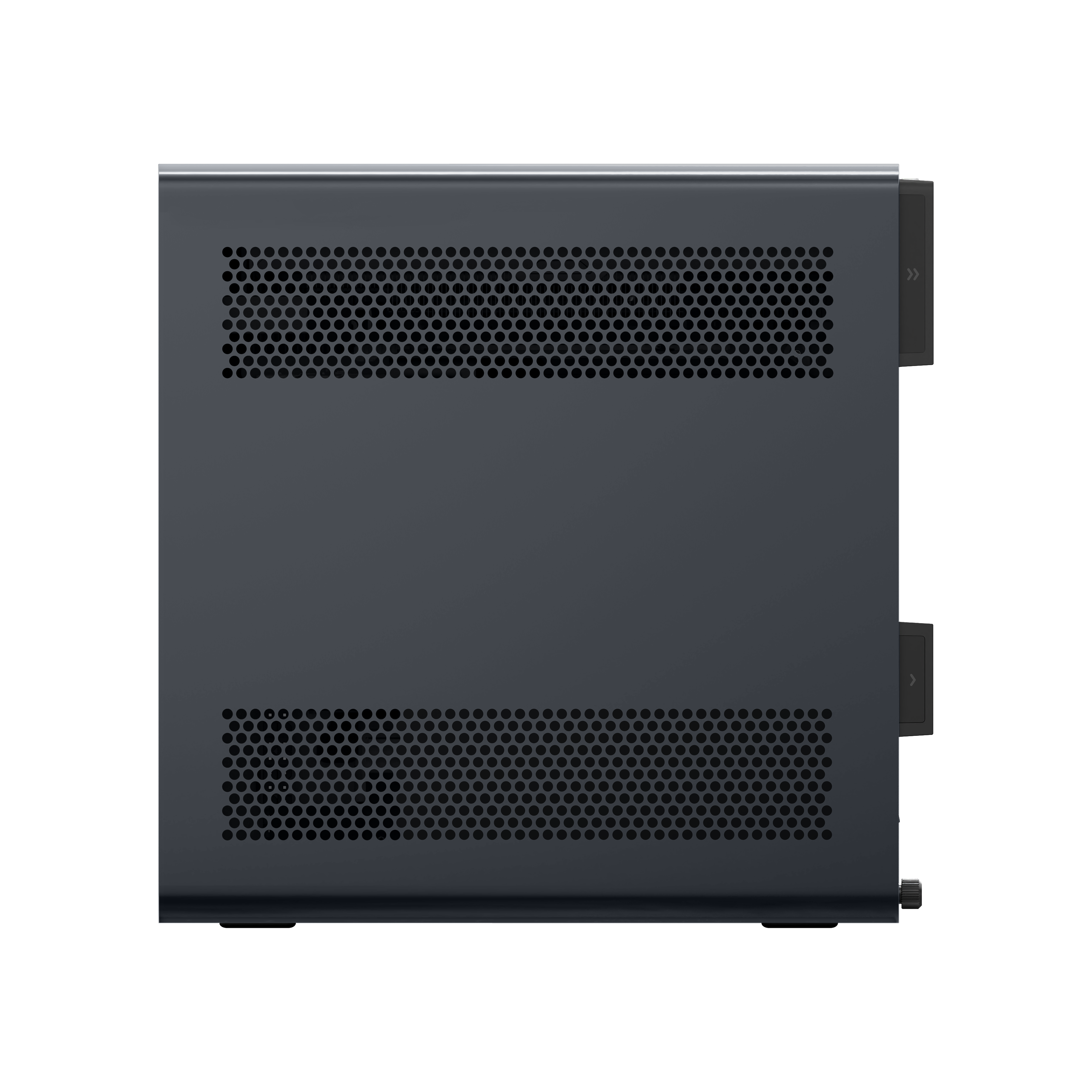

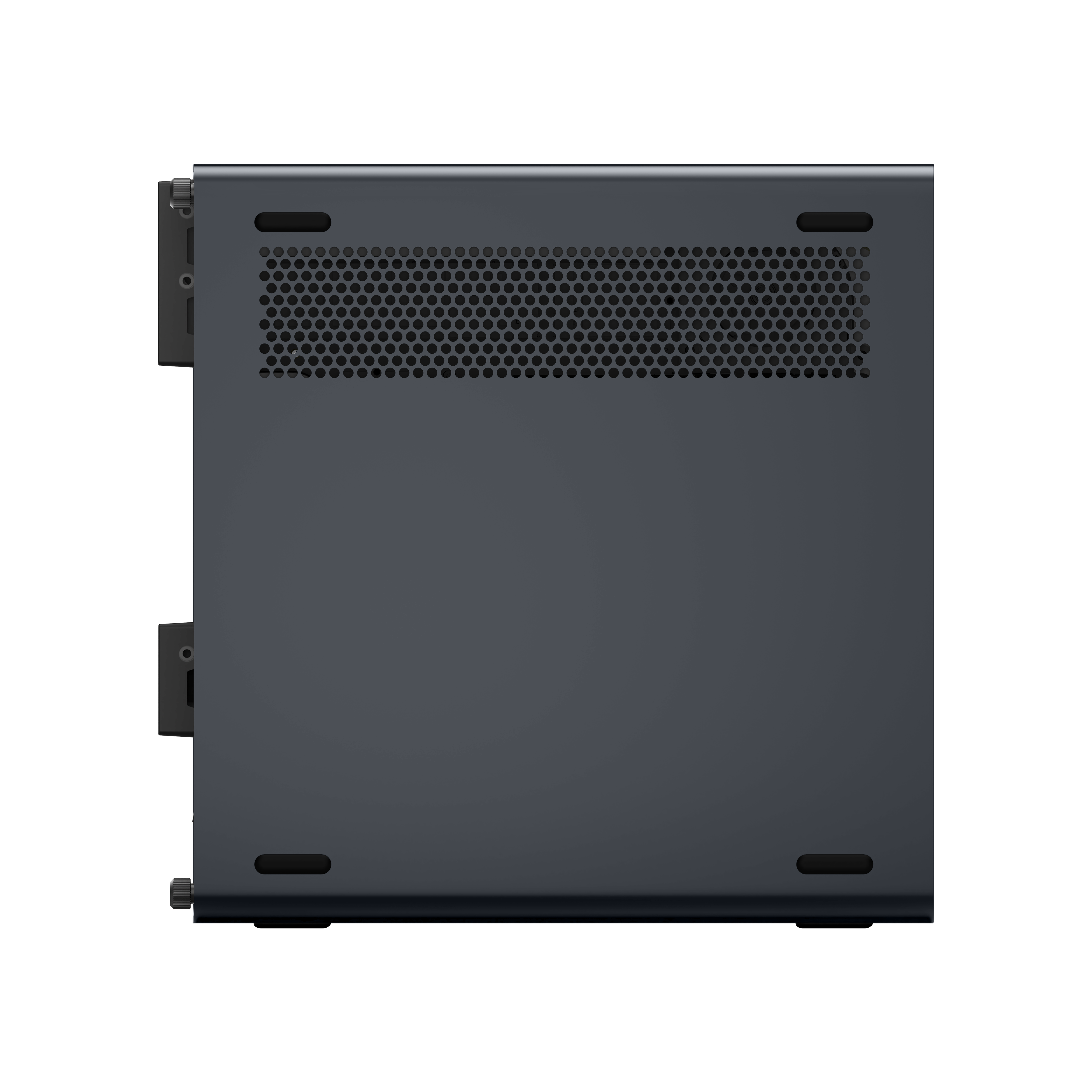

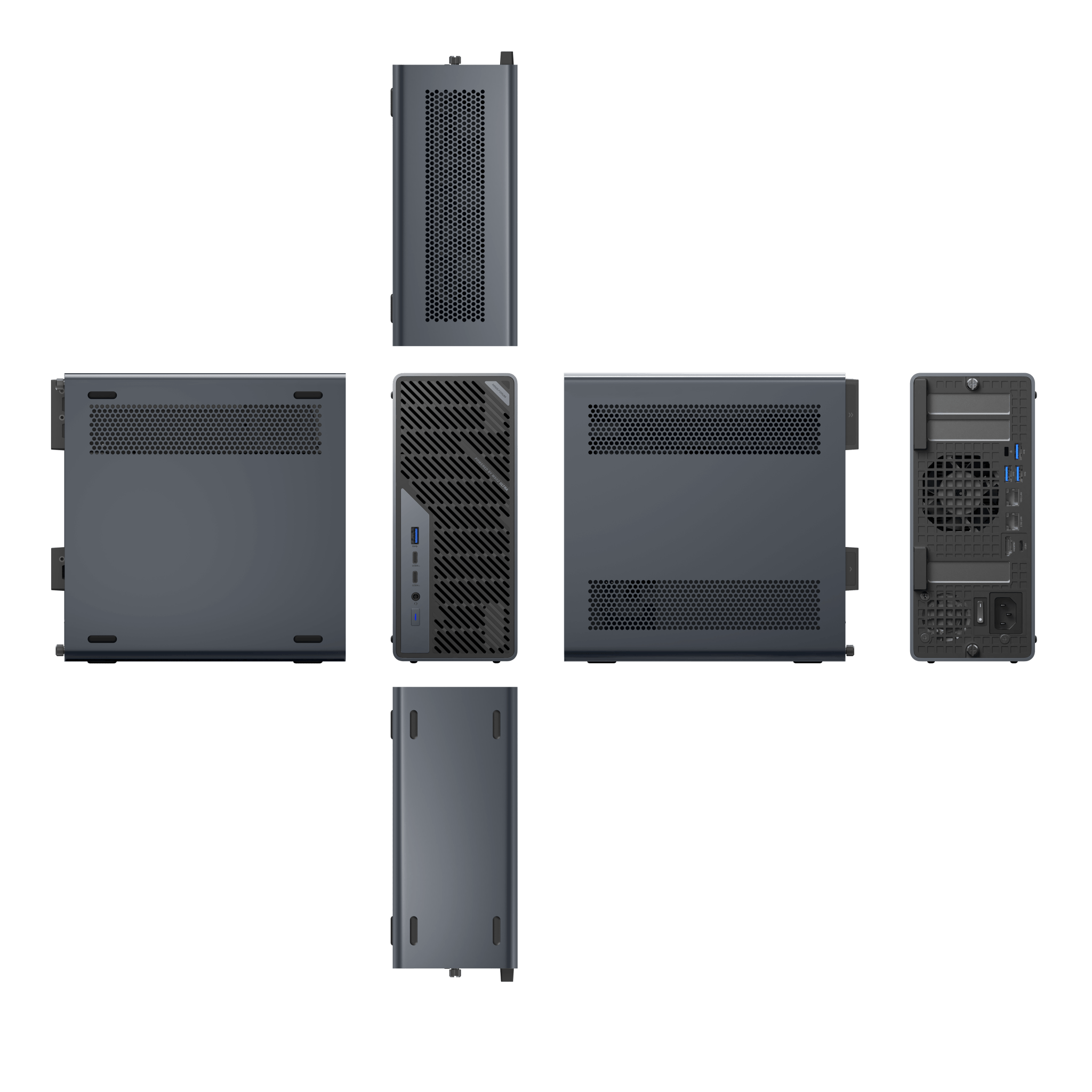

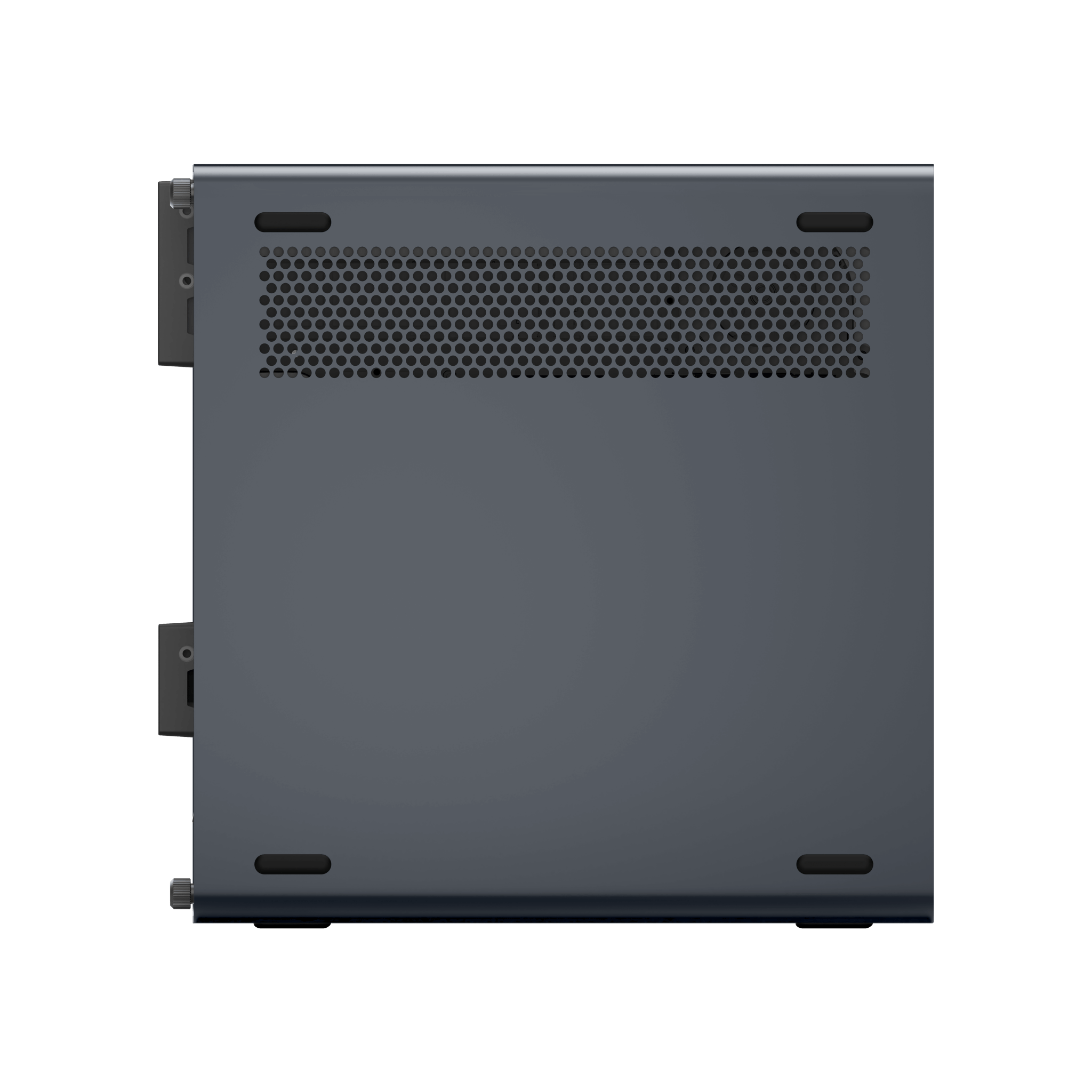

MINISFORUM MS-02-Ultra
Redefining Mini Workstations
Computation & Control
Powered by Intel® Core™ Ultra 9 285HX with a 24-core CPU (8P + 16E) and a 13 TOPS NPU, the system delivers both speed and efficiency for AI and media workloads, while PCIe GPU expansion unlocks advanced computing performance.
Intel® Core™ Ultra 9 285HX
24-core CPU
16 E-cores + 8 P-cores
13 TOPS
NPU
Zero Error, Zero Downtime Reliability

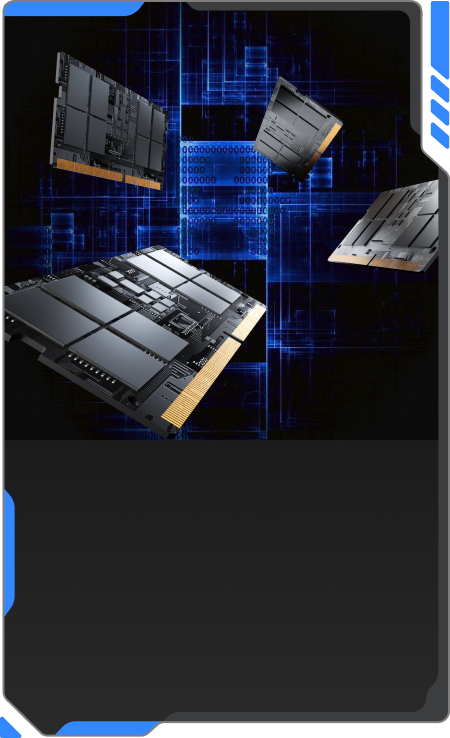

Up to 256 GB DDR5 Memory
Handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability
Scalable RAID Storage Architecture
Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.

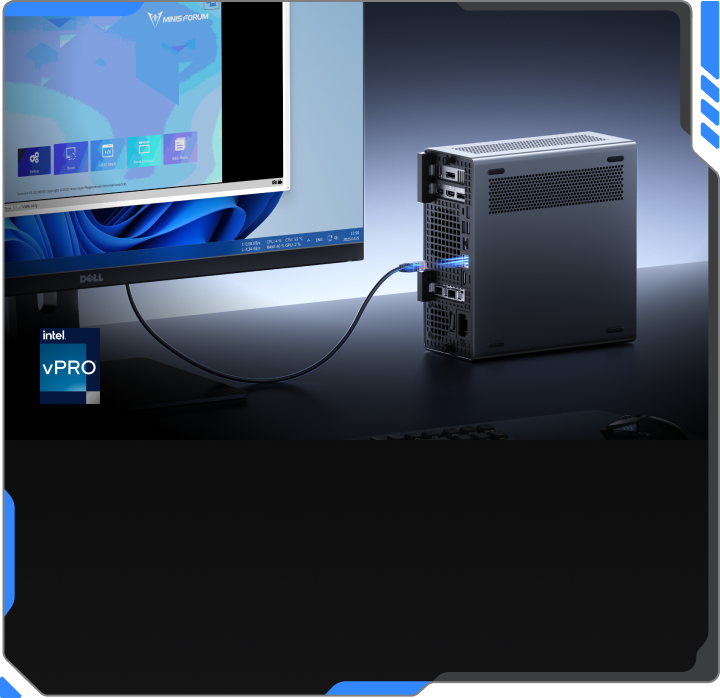

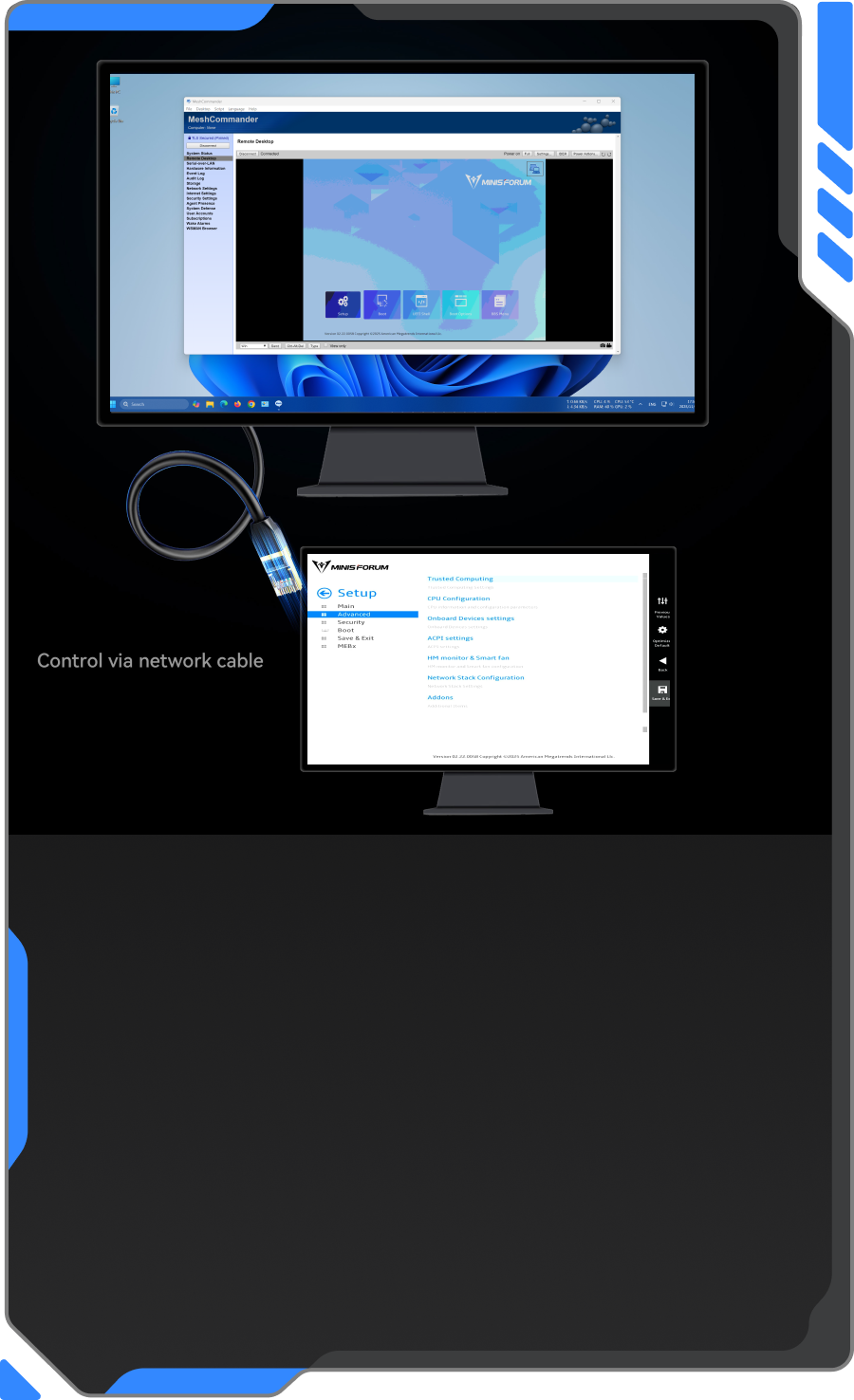

Intel® vPro® Remote Management
Intel® vPro® with BIOS-level KVM enables full remote control and 24/7 uptime.
Certified for industrial-grade reliability under sustained workloads.
Up to 256 GB DDR5 Memory
Handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability
Scalable RAID Storage Architecture
Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.
Intel® vPro® Remote Management
Intel® vPro® with BIOS-level KVM enables full remote control and 24/7 uptime.
Certified for industrial-grade reliability under sustained workloads.

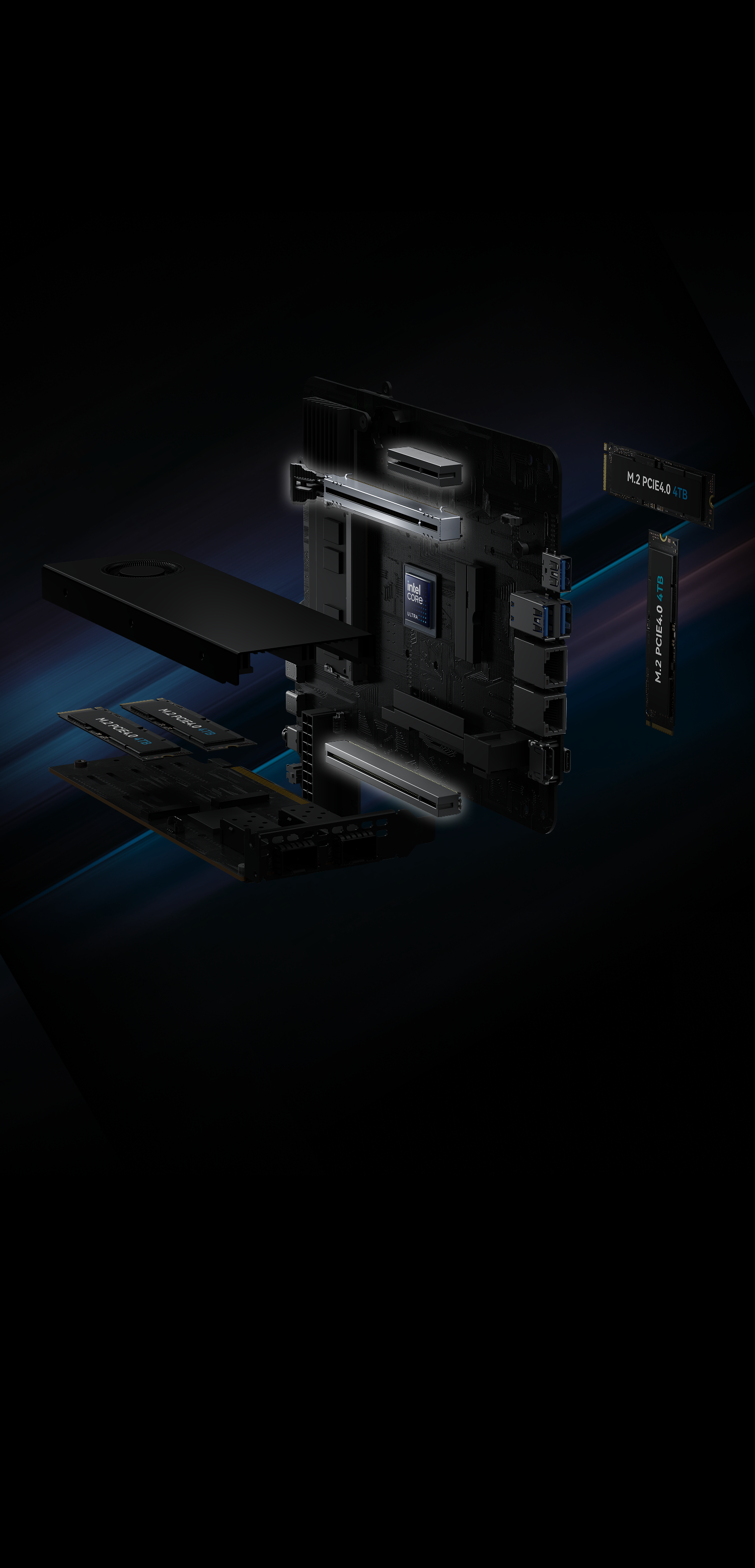

Mini yet LimitlessExpansion
Mini yet LimitlessExpansion
M.2 Storage Slots
4× M.2 2280 slots supporting both PCIe 4.0 ×4 NVMe, expandable up to 24 TB total capacity with RAID 0/1/5/10, enabling independent drives for projects, media, and cache with ultra-fast performance.

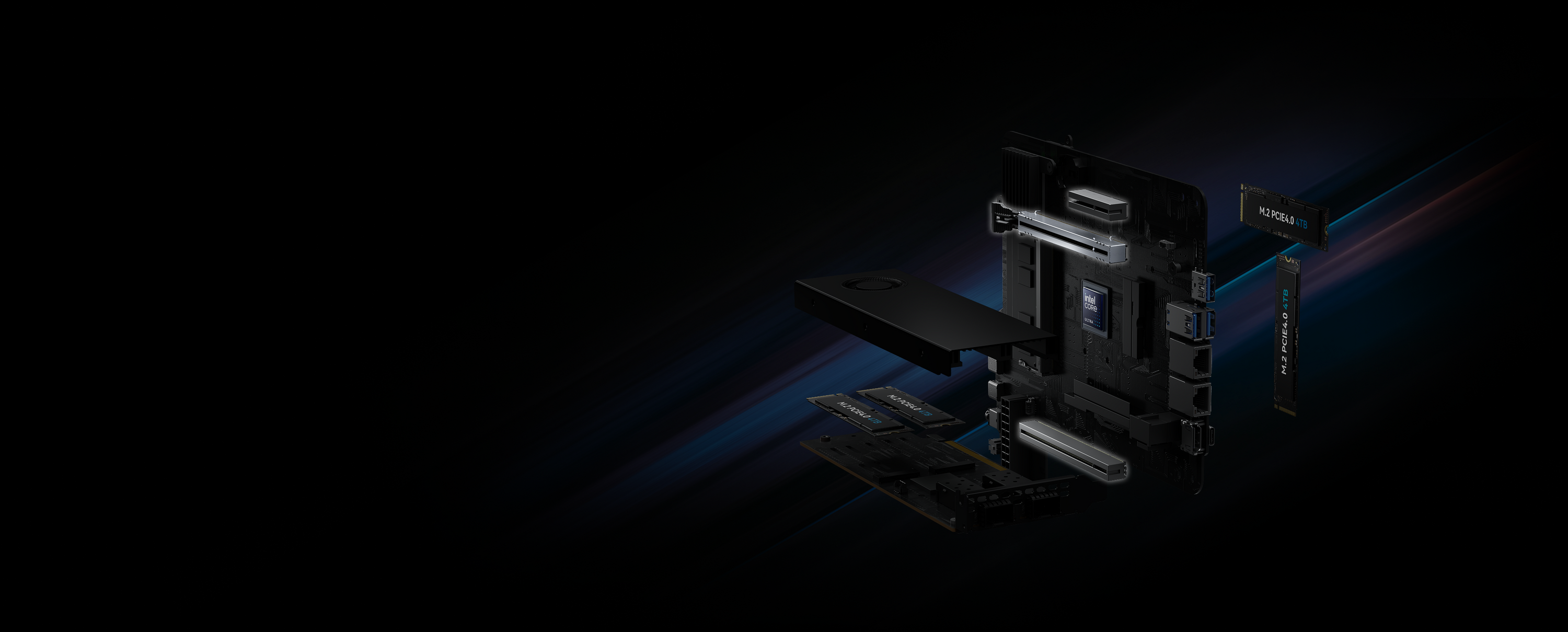

PCIe Expansion
Up to 3 PCIe slots including a ×16 dual-slot GPU,with the primary slot supporting PCIe 5.0 for high-bandwidth creative and computing workloads.
Revolutionizing team collaboration with ultra-low latency for 4K/8K media and AI data workflows.
Mini yet LimitlessExpansion
Mini yet LimitlessExpansion

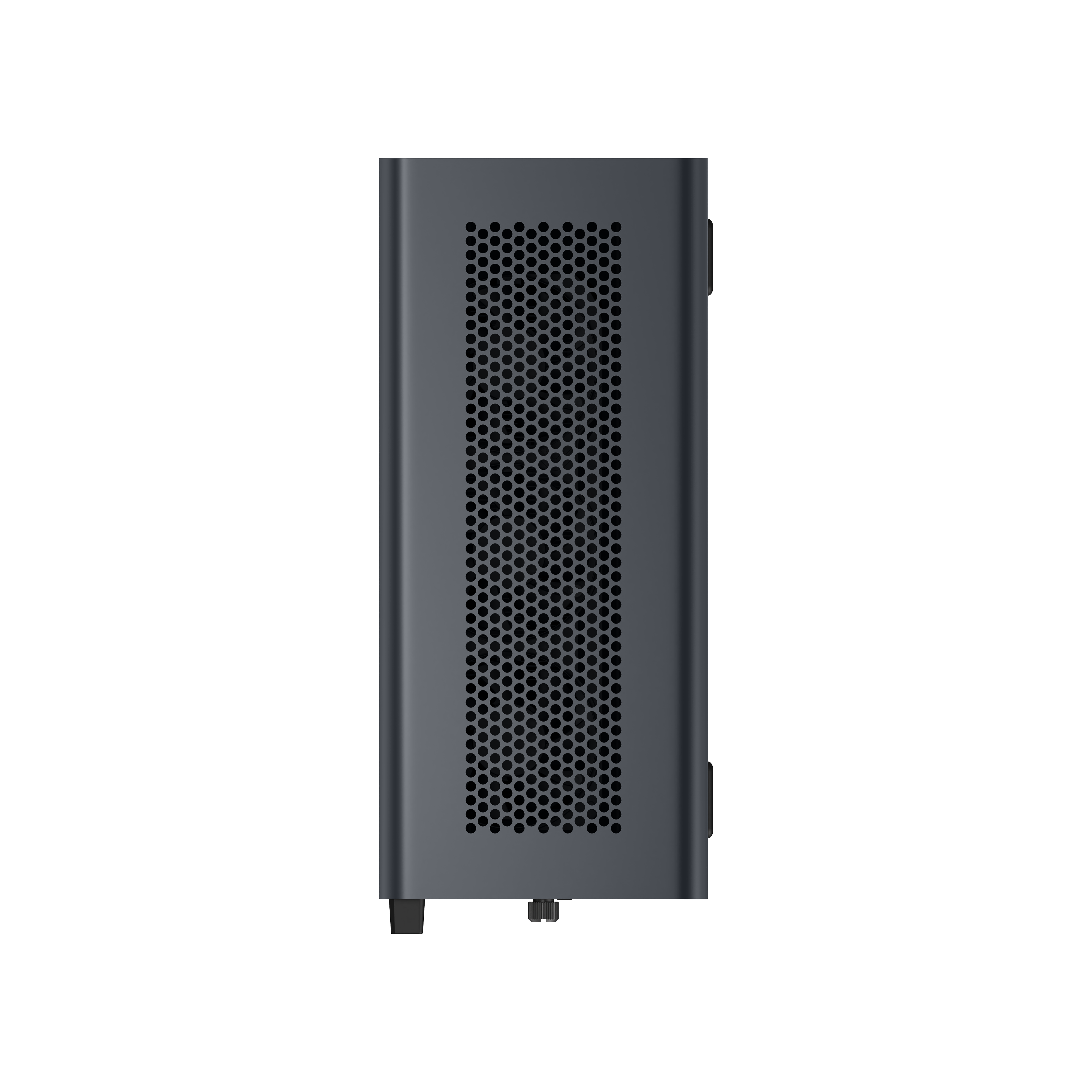

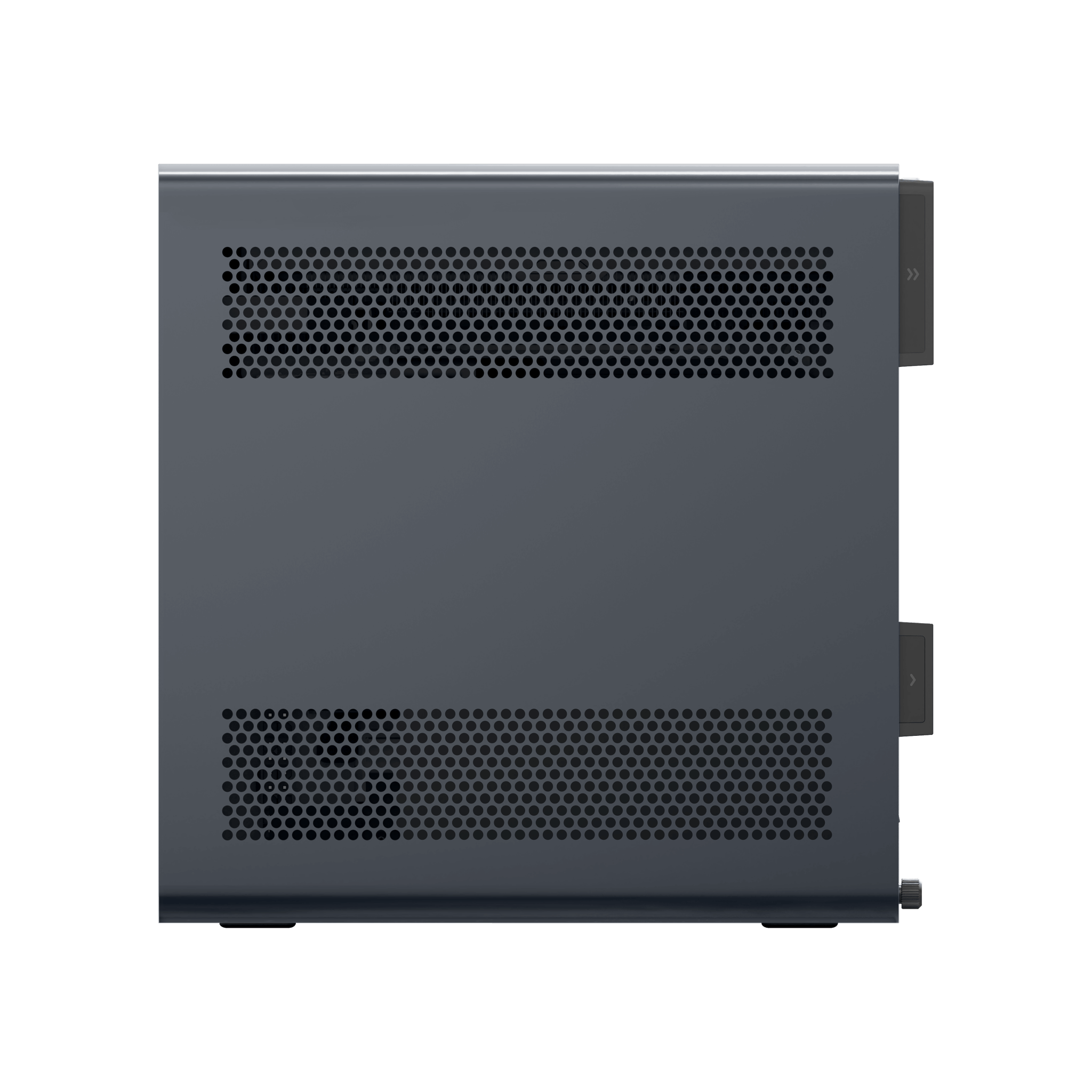

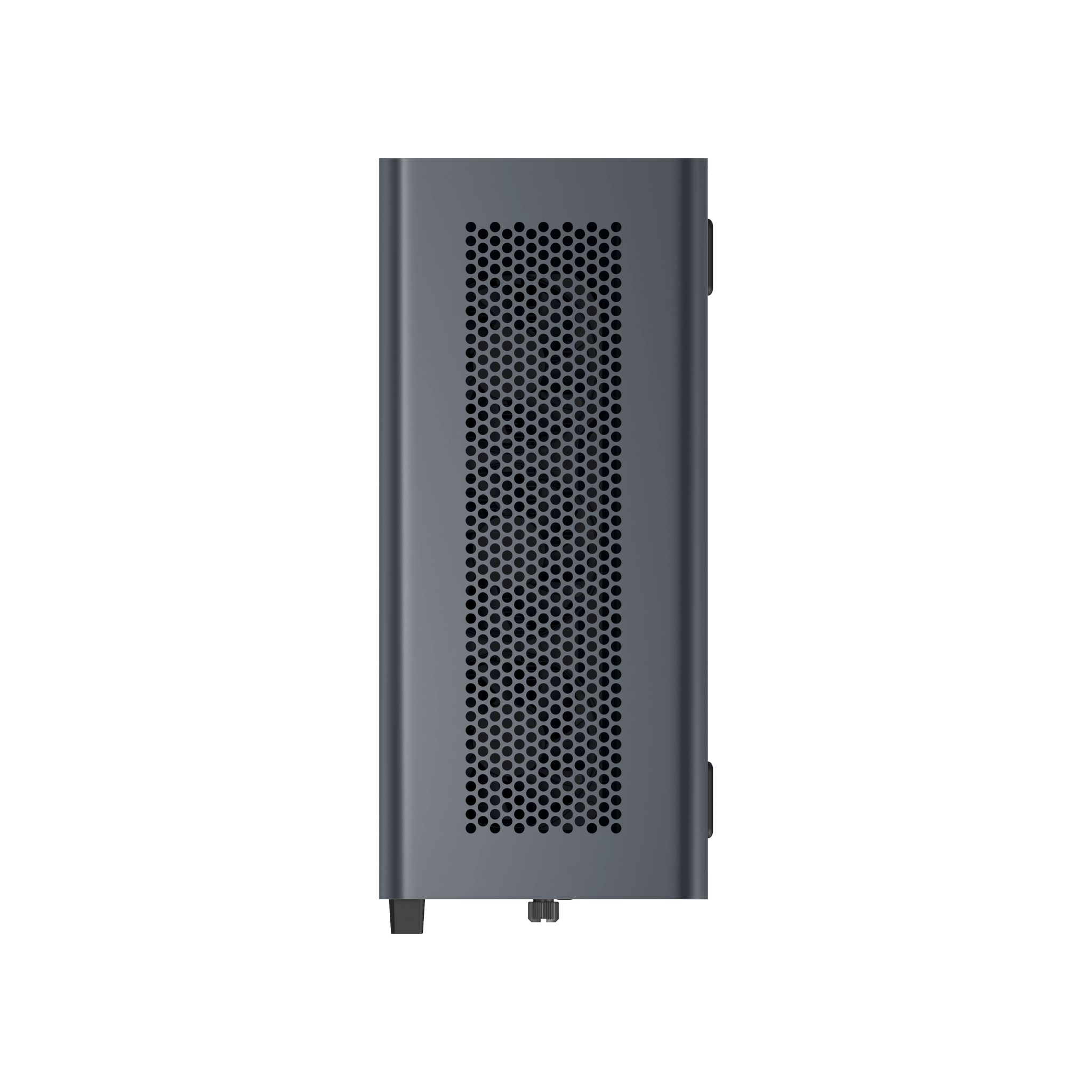

Server-Grade Airflow Design
Dedicated CPU/GPU airflow channels with a server-grade exhaust layoutensure precise thermal control and sustained system stability.
Built-in 350 W Power Supply
Integrated 350 W power design delivers reliable and efficient power for sustained performance — easy to deploy and maintain.
Efficient & Quiet Cooling
6 heat pipes and dual fans efficiently handle 100W TDP CPU heat, maintaining stable and quiet operation at 36 dB.
MiniWorkStation MS-02 Ultra
Product Specification
Intel® Core™ Ultra 9 285HX
24 Cores (8 P-Cores + 16 E-Cores), 24 Threads
Max Clock: 5.5 GHz
Without dGPU: 100W PL1 / 140W PL2
With dGPU: 90W PL1 / 110W PL2
Intel® Graphics(Internal)
Max GPU Clock: 2 GHz
Intel® AI
NPU Computing Power: Up to 13 TOPS
4 x DDR5 SODIMM slots (ECC supported; XMP overclocking not supported).
Max frequency support: 4800MHz
Max capacity support: 256GB
2 × M.2 2280 NVMe SSD slots
(PCIe 4.0 x4, Up to 8TB each)
2 × M.2 2280 NVMe SSD slots
(Inside 25GbE NIC, up to 8 TB/slot PCIe 3.0 x4) or 4 TB/slot PCIe 4.0 x4)
Six-heatpipe radiator with Phase Change Material (PCM)
Max CPU Fan Speed: 5000 RPM
Wi-Fi 7 | Bluetooth® 5.4
2 × 25 GbE SFP+
1 × 10 GbE LAN RJ45
1 × 2.5 GbE LAN RJ45
1 x HDMI™ 2.1 FRL (8K@60Hz, 4K@120Hz)
1 x USB4 with DP Alt Mode (8K@60Hz, 4K@120Hz)
2 x USB4 V2 with DP Alt Mode (8K@60Hz, 4K@120Hz)
1 х HDMI™
1 х USB4
2 х USB4 V2
1 х 3.5mm Audio Jack
3.5mm Combo Jack（TRRS） х 1

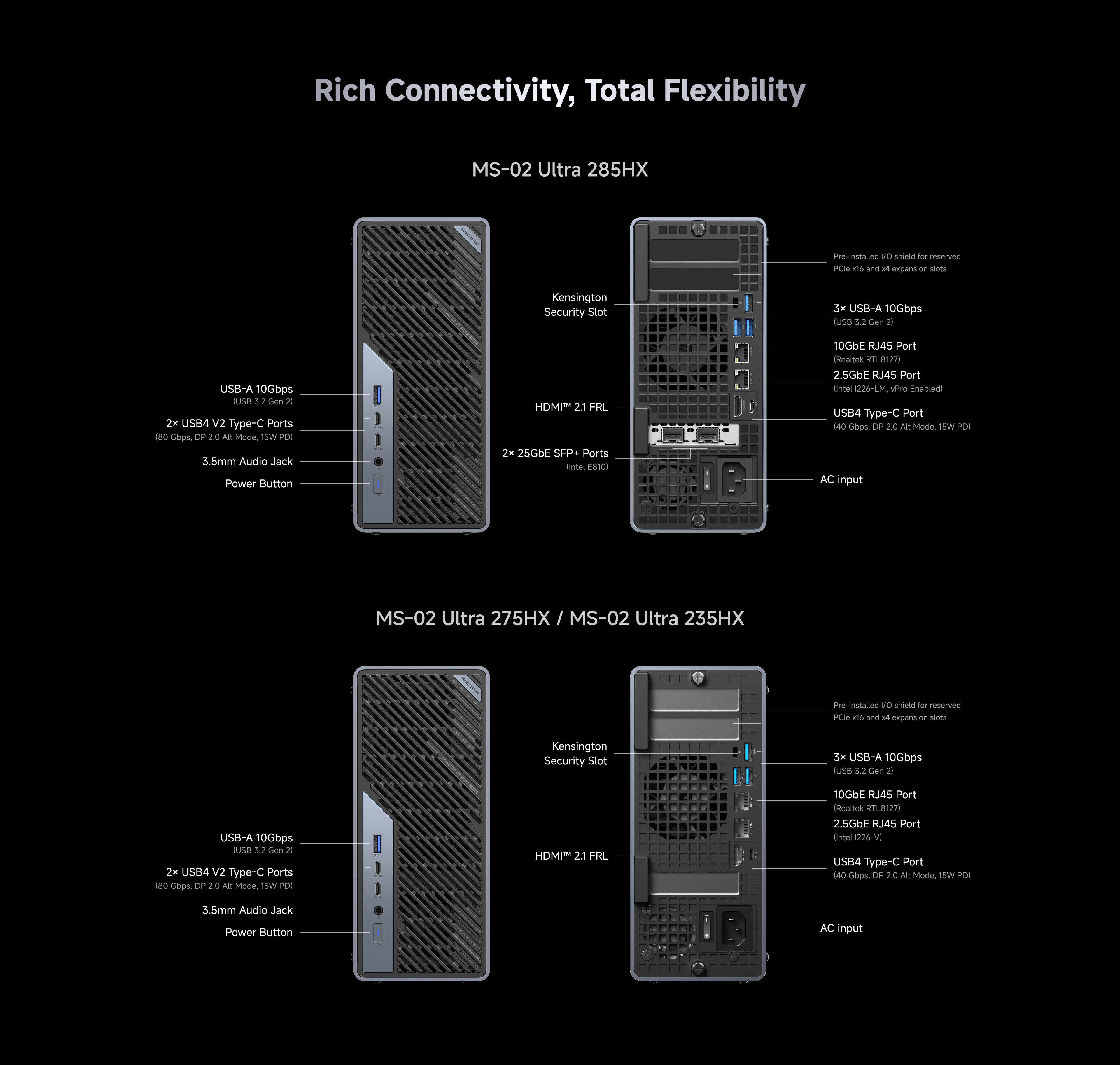

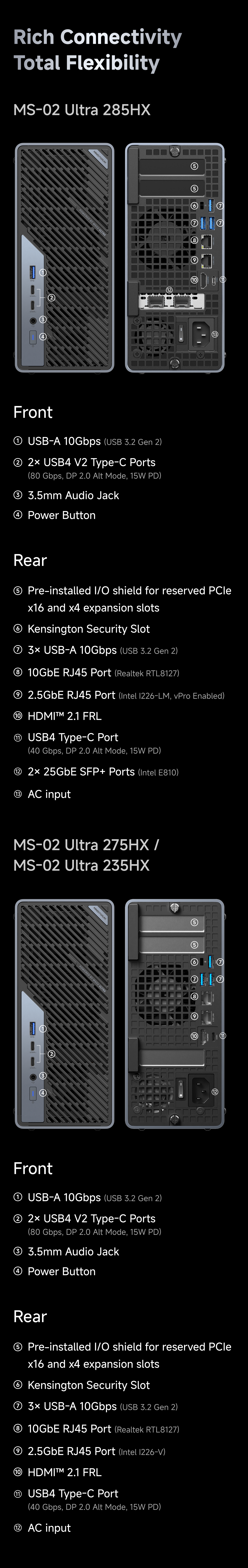

2 x USB4 V2 Type-C Ports(80 Gbps, DP 2.0 Alt Mode, 15W PD)
1 x USB 10Gbps Type-A Port(USB 3.2 Gen 2)
1 x 3.5mm Audio Jack
1 x Power Button

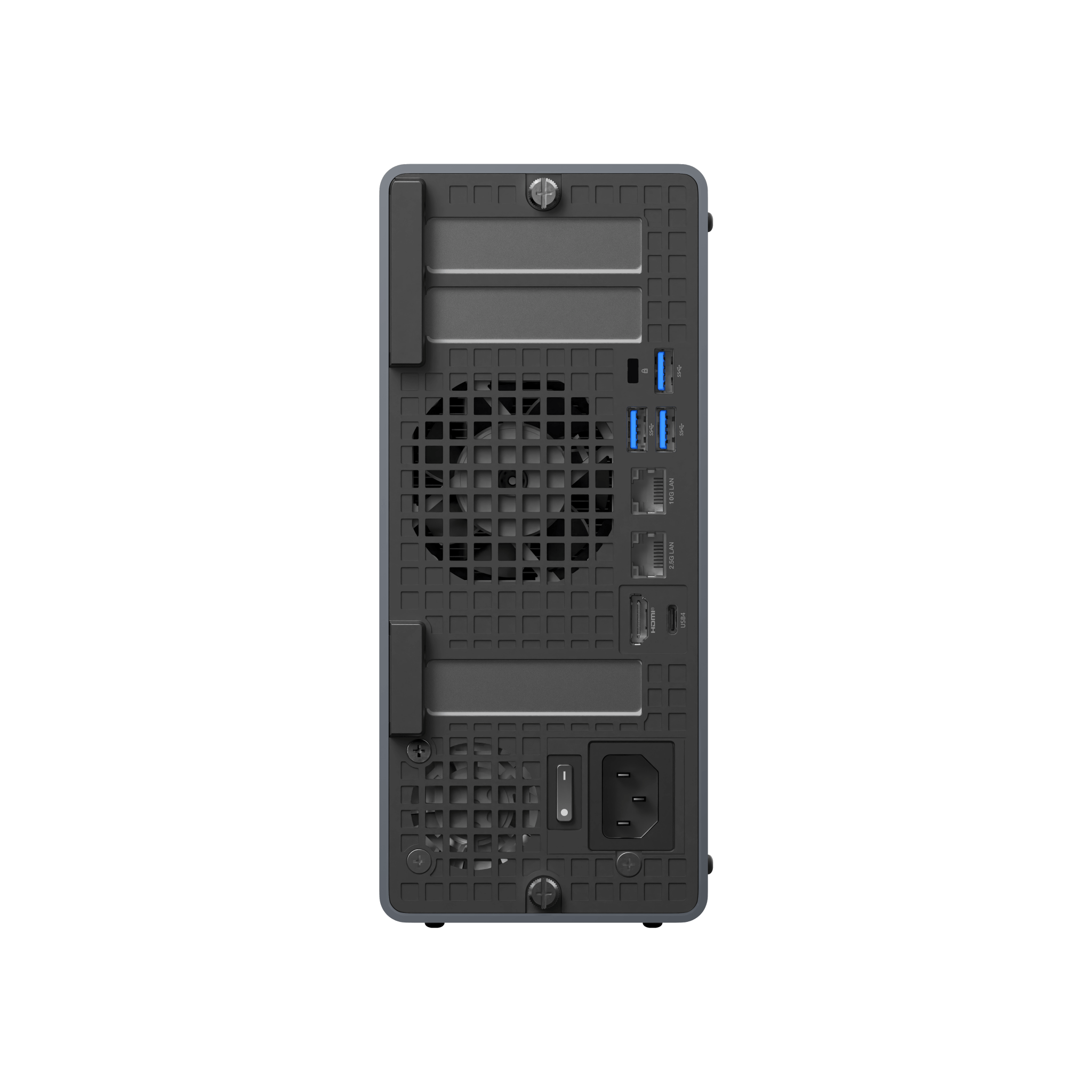

2 x 25GbE SFP+ Ports (Intel E810)
1 x 10GbE RJ45 Port (Realtek RTL8127)
1 x 2.5GbE RJ45 Port (Intel I226-LM, vPro Enabled)
1 × HDMI™ 2.1 FRL
1 x USB4 Type-C Port(40 Gbps, DP 2.0 Alt Mode, 15W PD)
3 x USB-A 10Gbps(USB 3.2 Gen 2)
1 × PCIe 5.0 x16 Slot (bifurcation support )
1 × PCIe 4.0 x16 Slot (PCIe 4.0 x4+x4+x4) with Pre-installed 25GbE NIC
1 × PCIe 4.0 x4 Slot
Clear CMOS Button x 1
Windows 11 Pro
AC input (100-240V ~6A 50-60Hz, 1U 350W MAX)
N/A
3.3 kg
