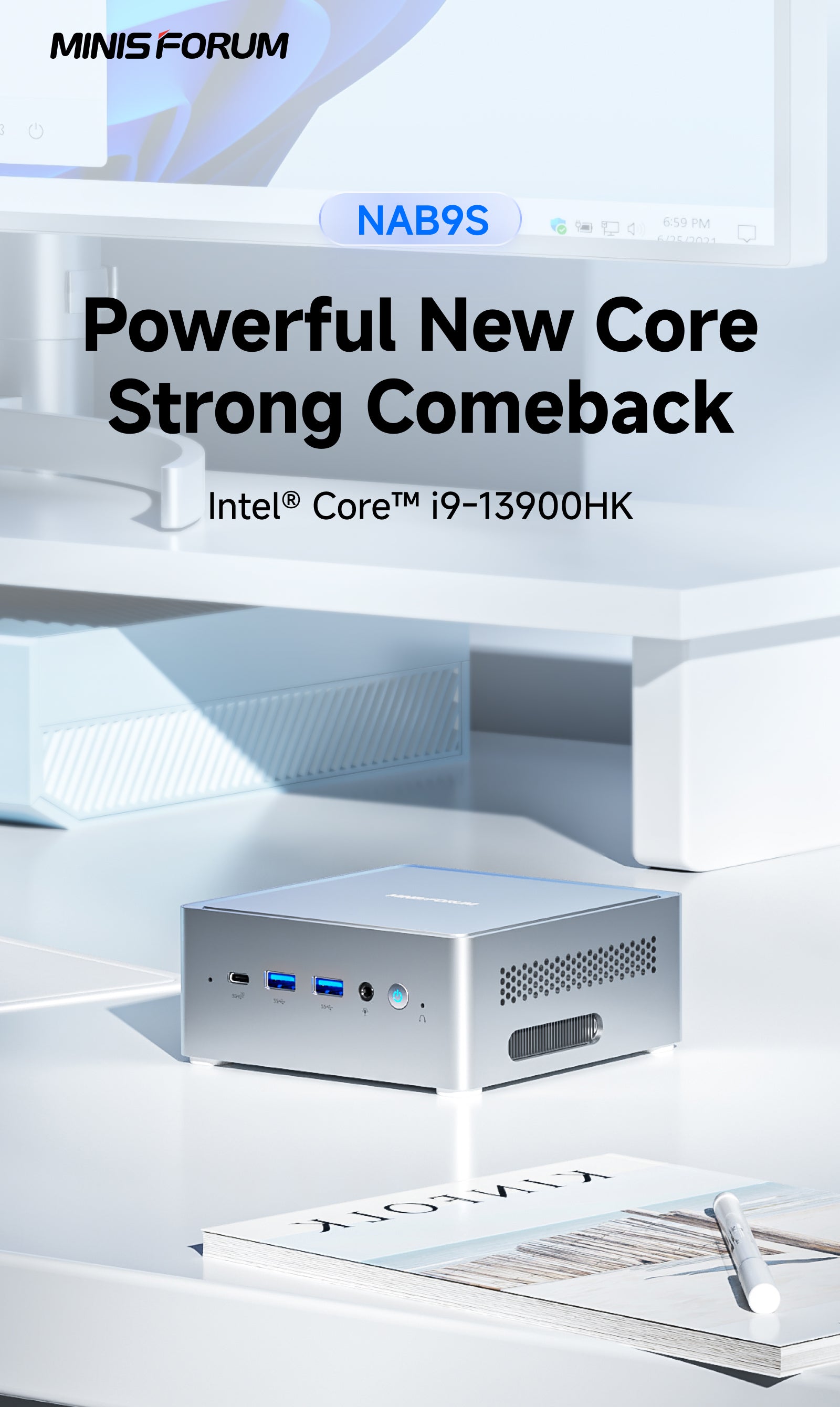

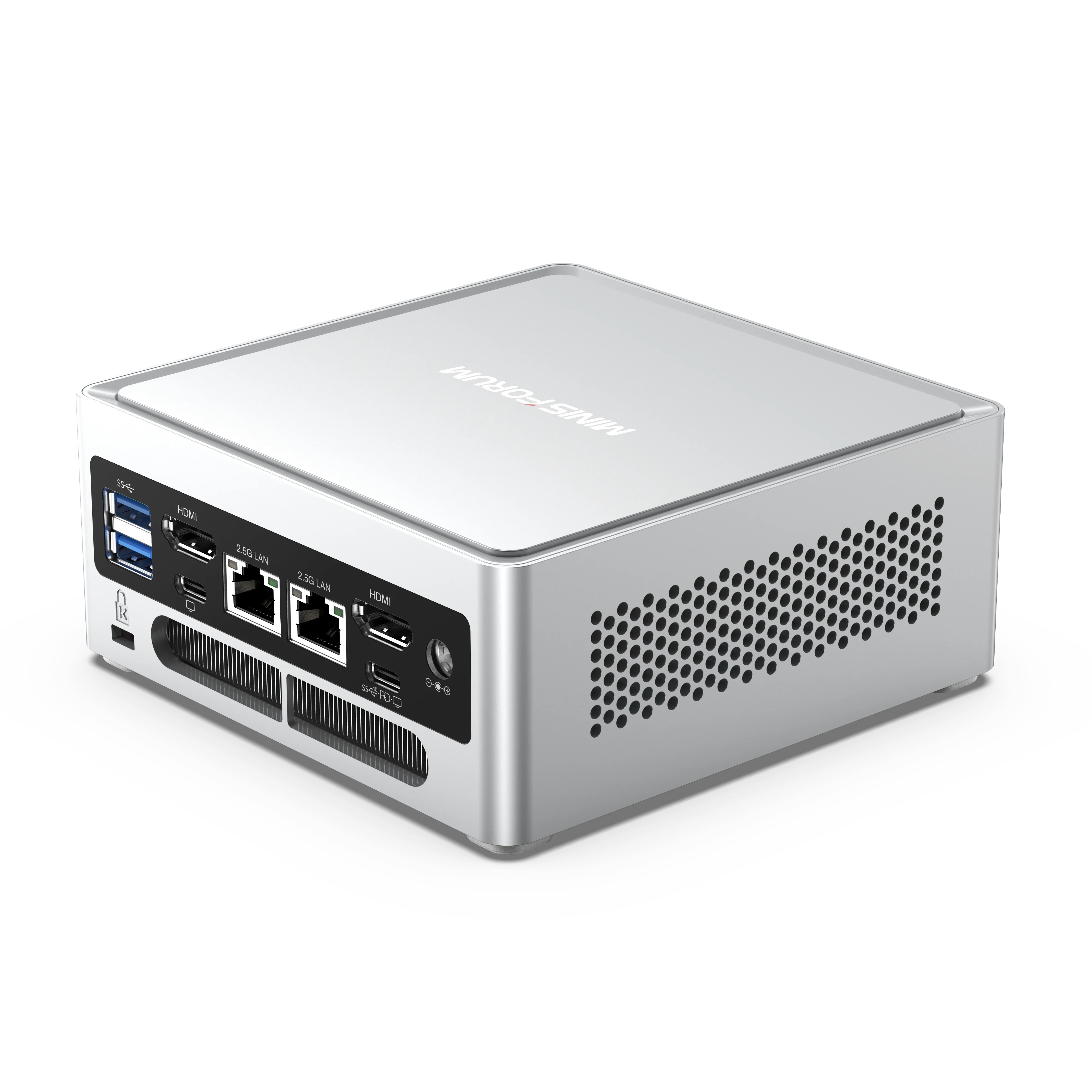

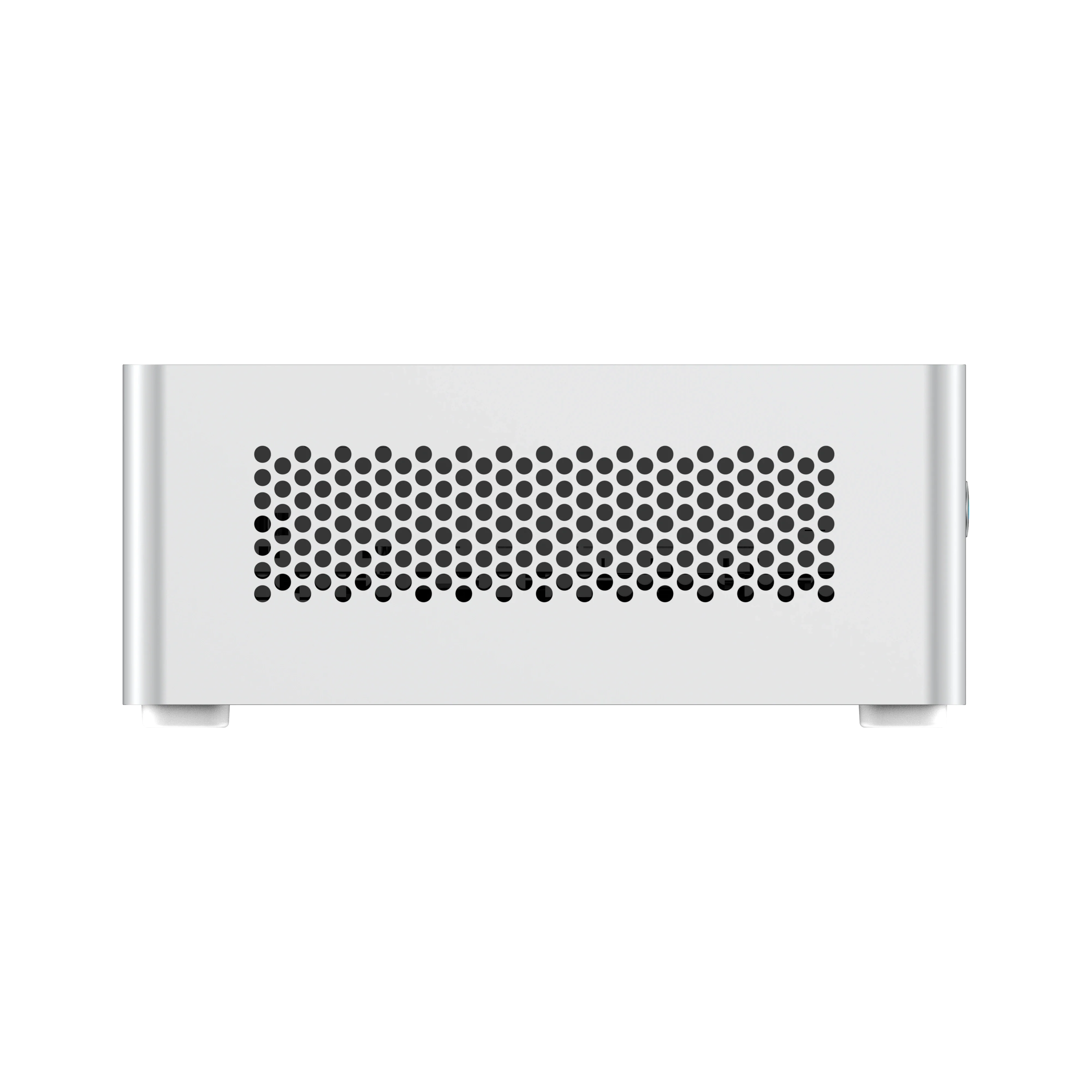

MINISFORUM NAB9S

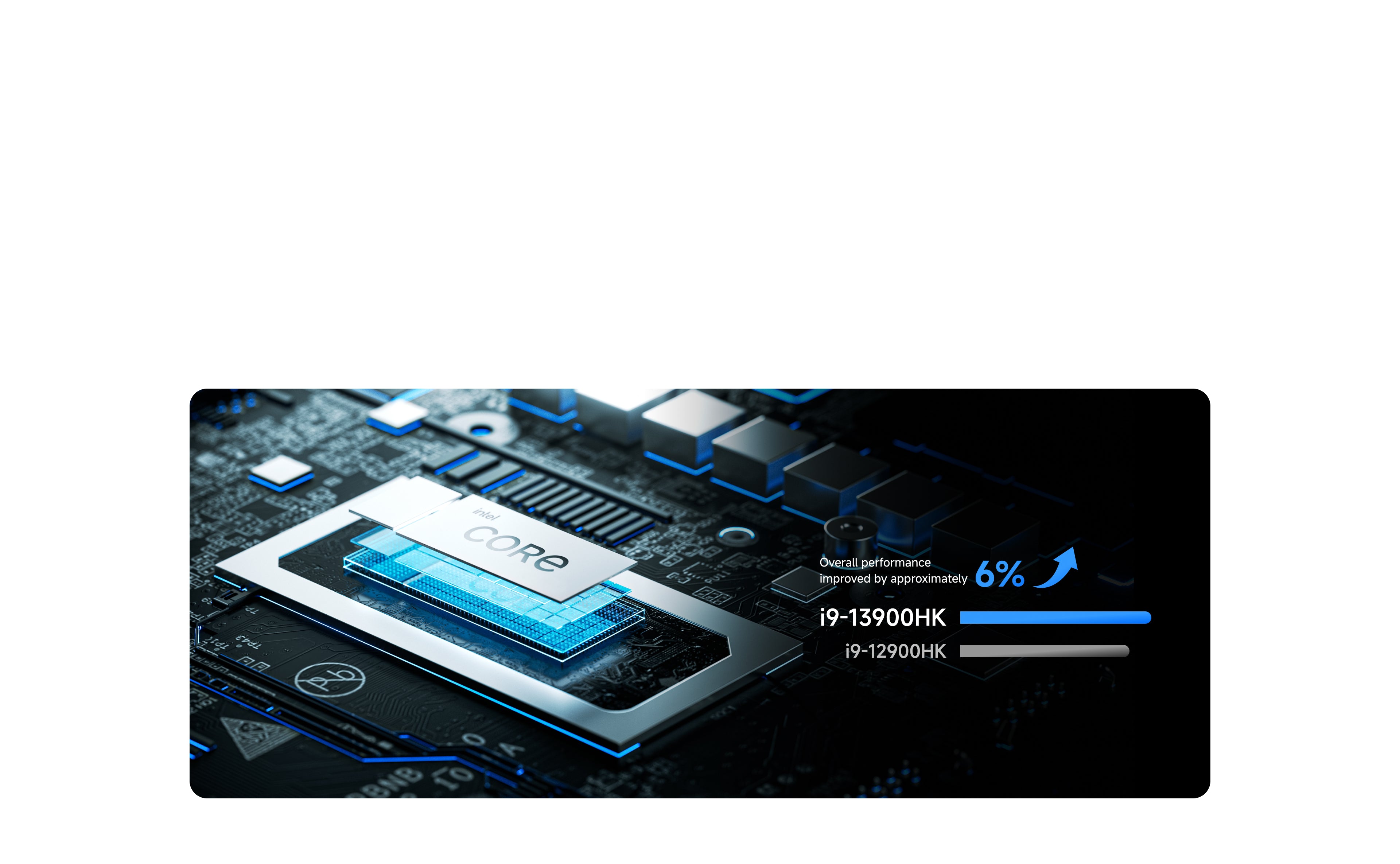

13th Gen Intel® Core™
i9 Powerful Performance, A New Leap Forward
Built on the Raptor Lake architecture, its revolutionary hybrid design of Performance-cores and Efficient-cores delivers an efficient, high-performance experience.
14
Cores
20
Threads
24MB
Cache
5.4GHz
Turbo Frequency

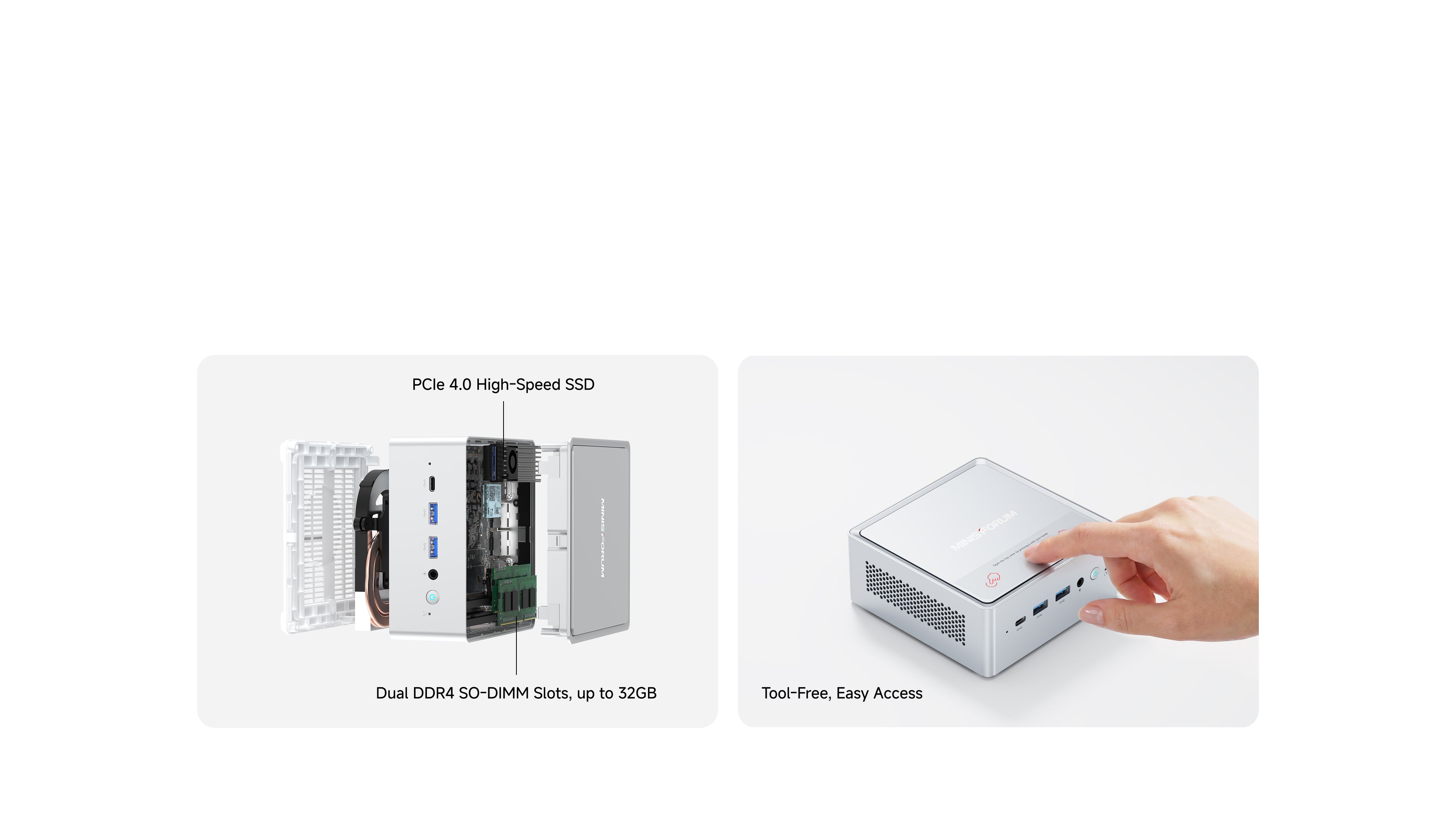

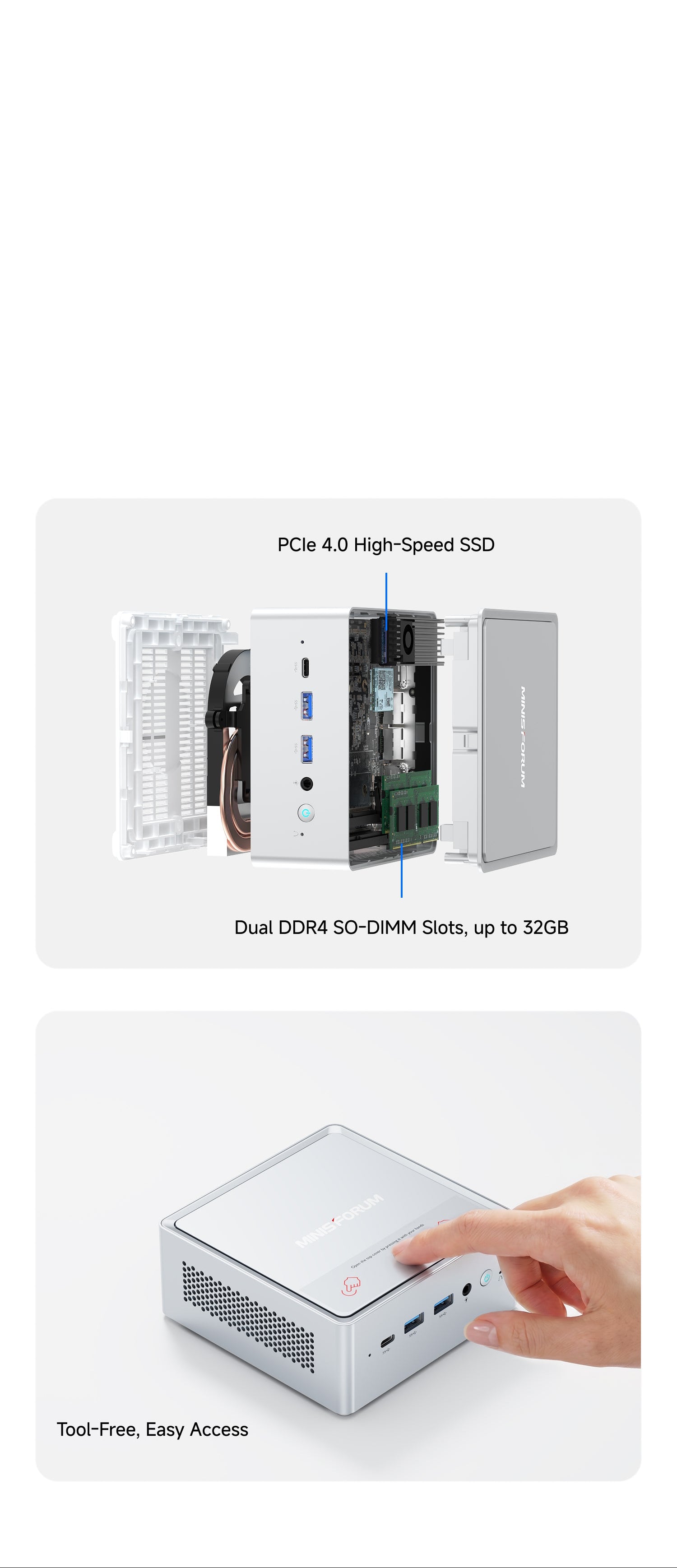

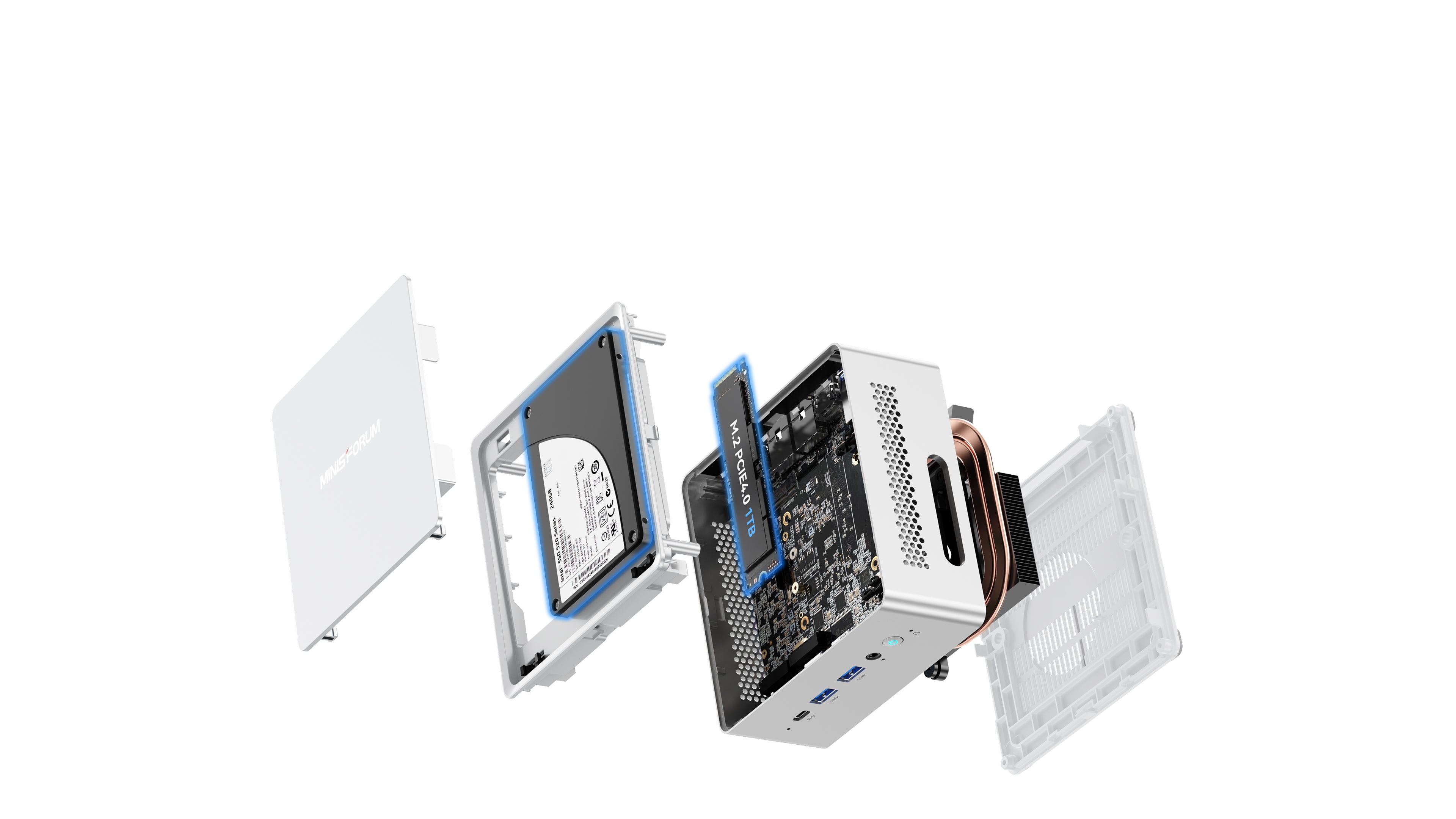

Easy Upgrades with Tool-Free Access
The classic push-to-open design returns. Simply press the top cover to pop it open—no tools required—making it easier to add or replace memory, storage, and other components.

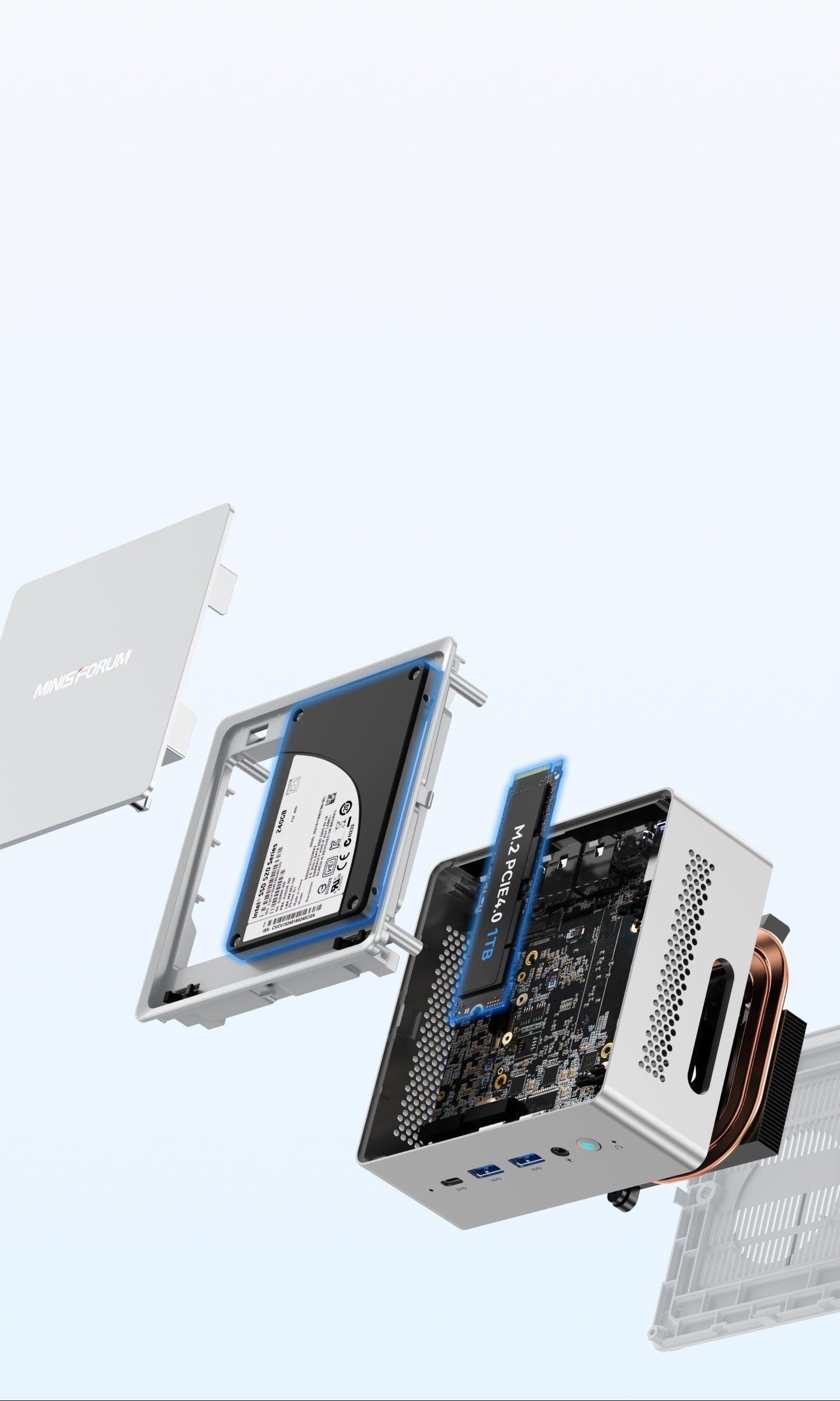

Dual-Drive Support
In addition to M.2 SSD support, it also supports a 2.5-inch SATA SSD/HDD, giving you more flexible storage combinations.

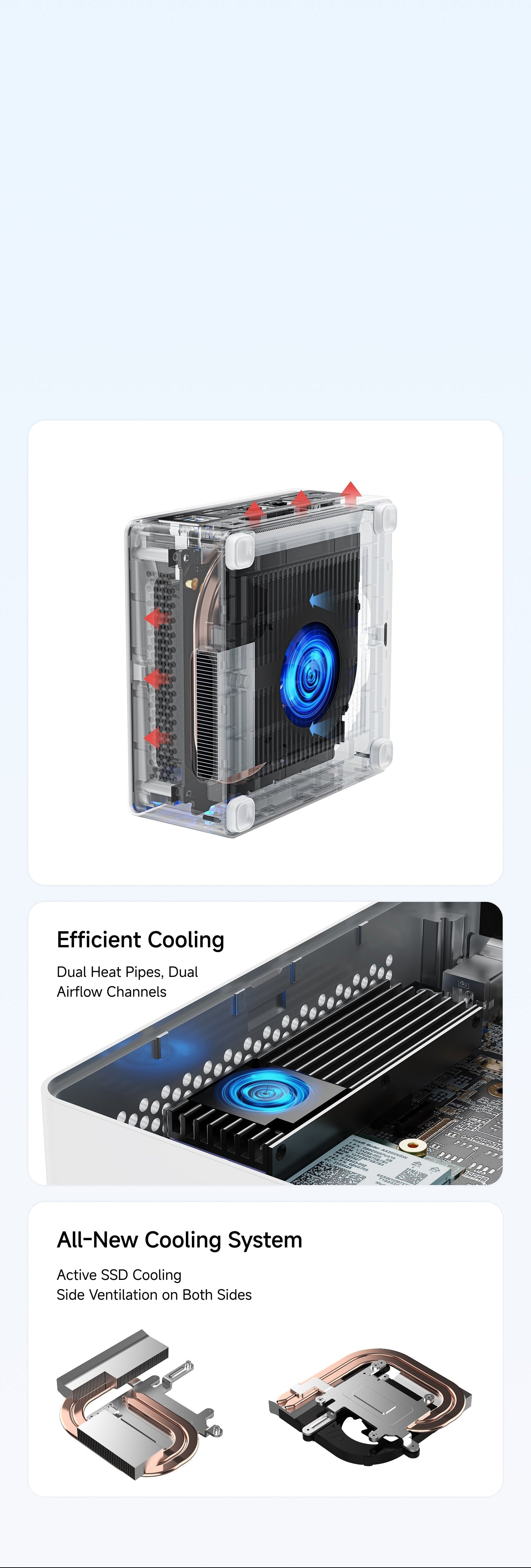

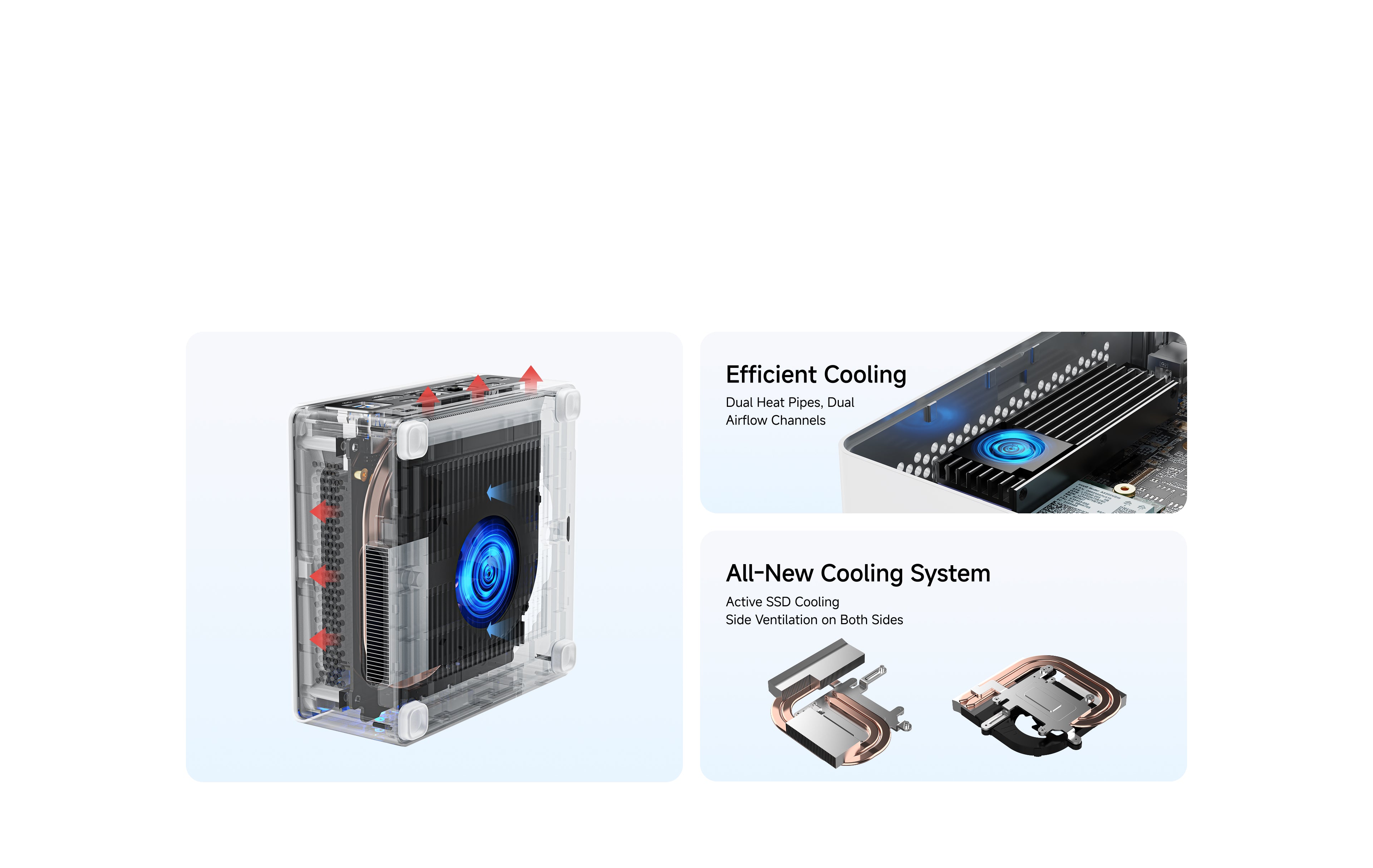

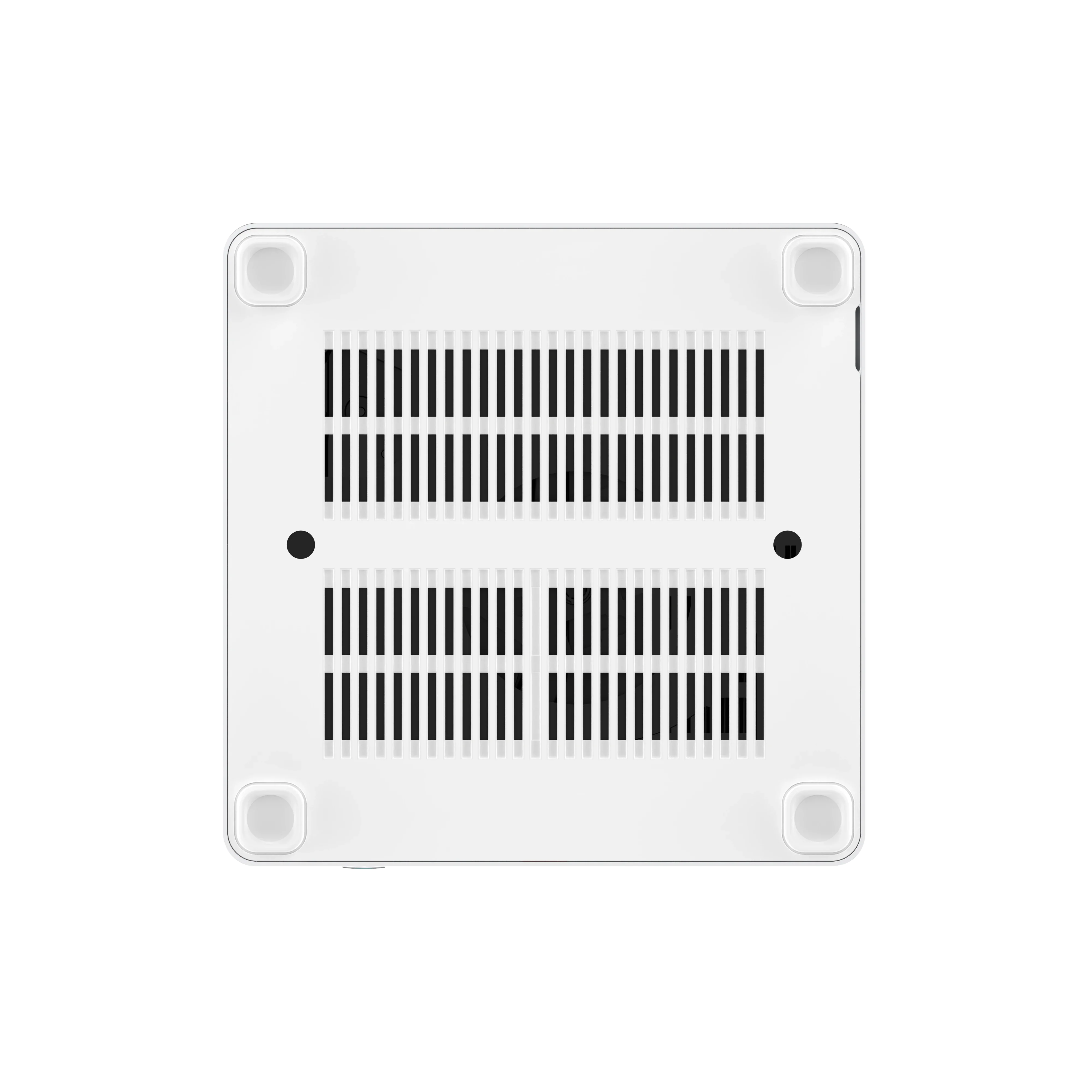

All-New Cooling System with Dual Heat Pipes and Dual Airflow Channels

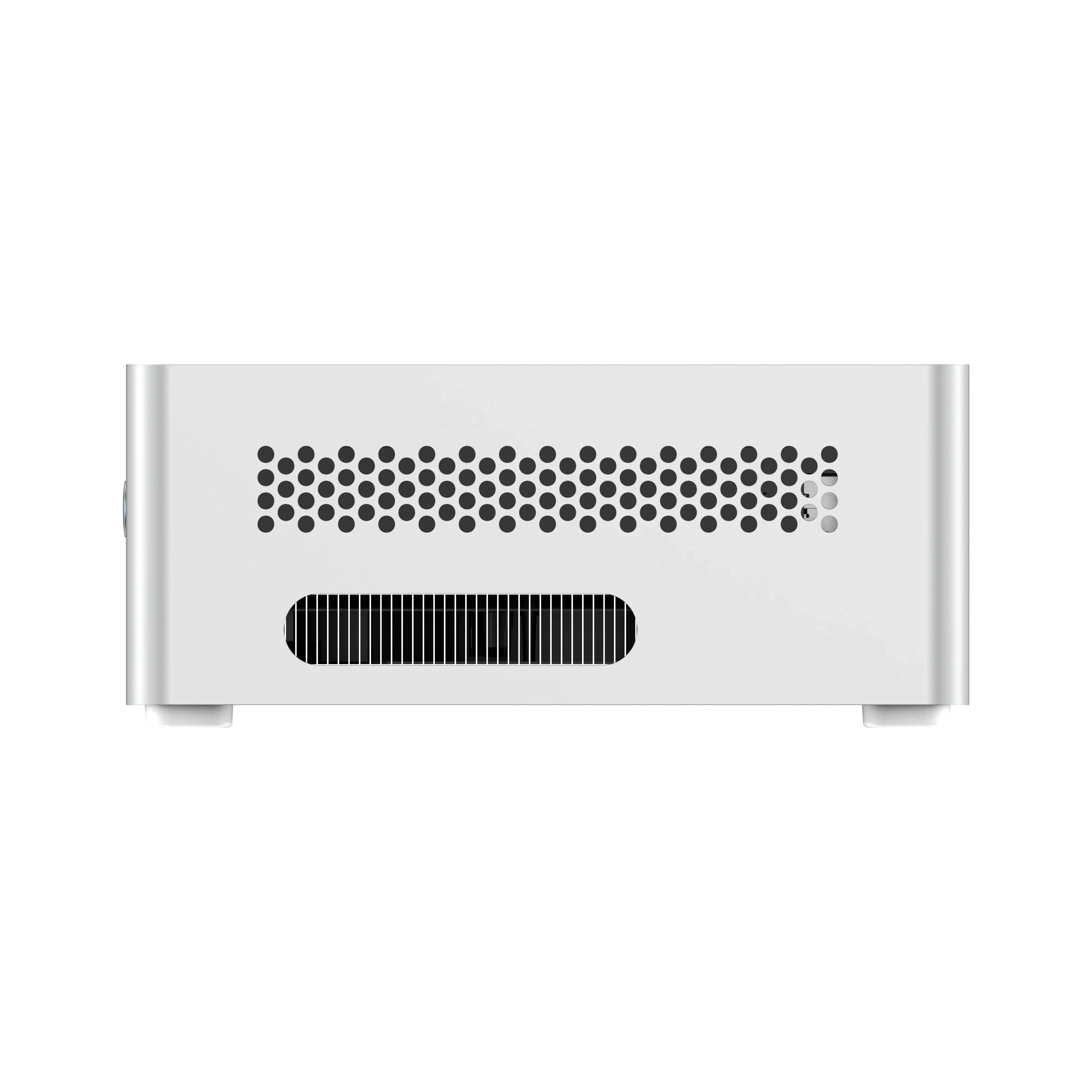

The redesigned cooling system features dual heat pipes and side ventilation on both sides, delivering powerful heat dissipation for consistently stable performance.

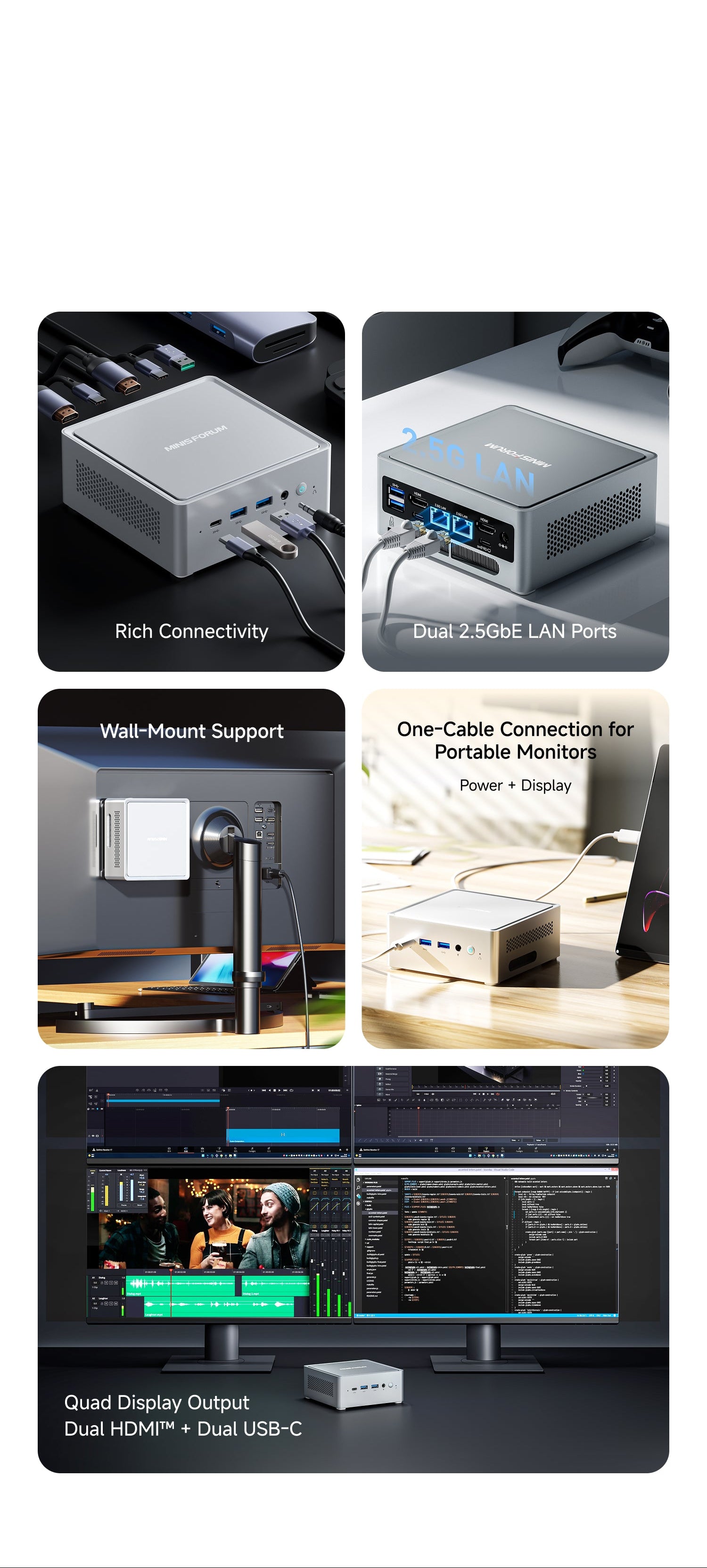

Versatile Usage Scenarios
Business & Office
Dual LAN ports allow internal and external networks to stay online simultaneously. With wall-mount support, a compact space-saving design, and rich connectivity, it easily handles multi-screen multitasking and remote video meetings for a major boost in productivity.
Light Content Creation
Ideal for video editing, photo retouching, drawing, audio processing, and copywriting. Multiple displays show different workspaces for a stable and comfortable experience.
Entertainment & Learning
Perfect for HD media playback, online gaming, online courses, and information browsing—showcasing the advantages of its compact size, low noise, and high energy efficiency.

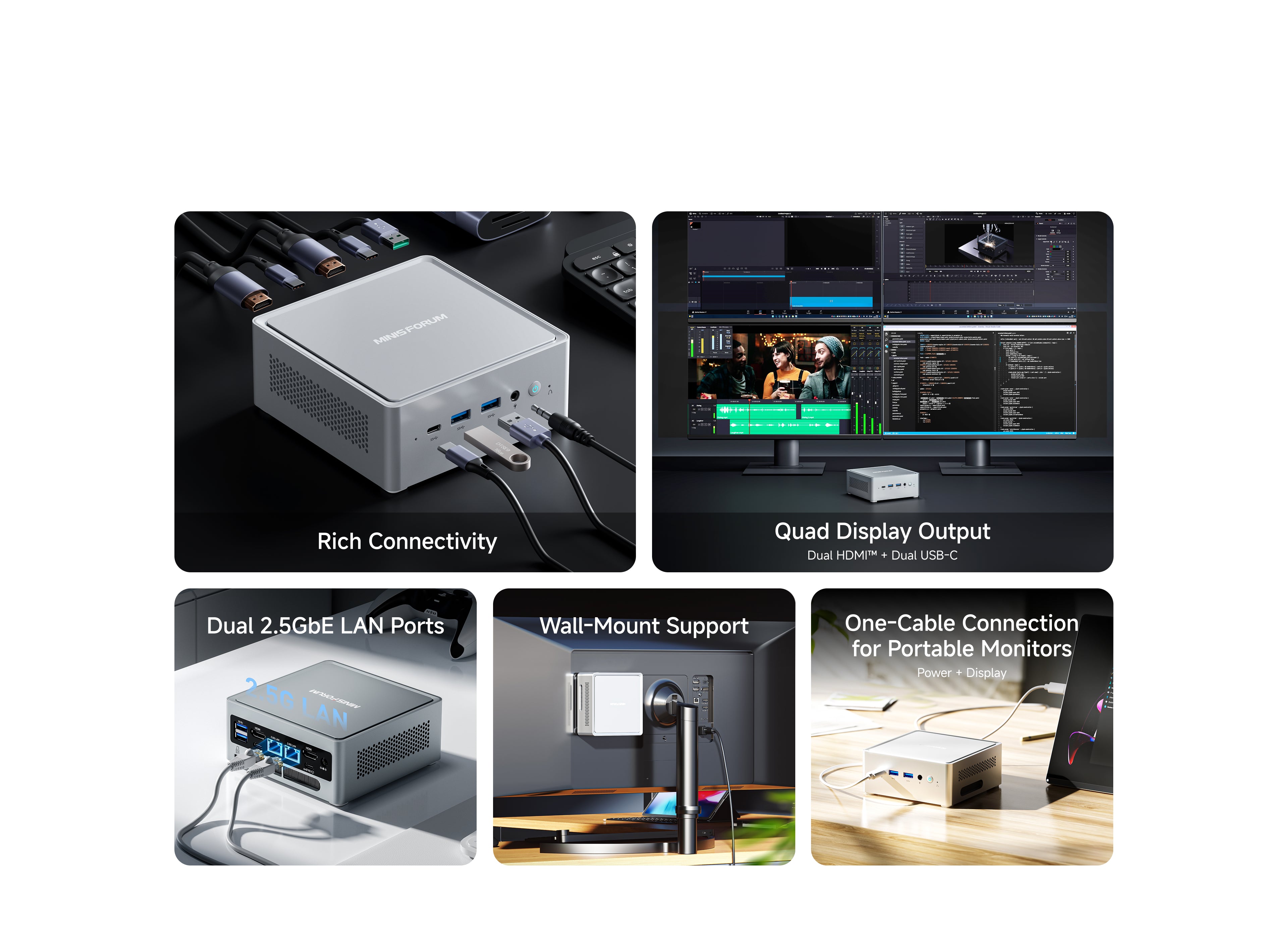

Rich Connectivity, Doubled Efficiency

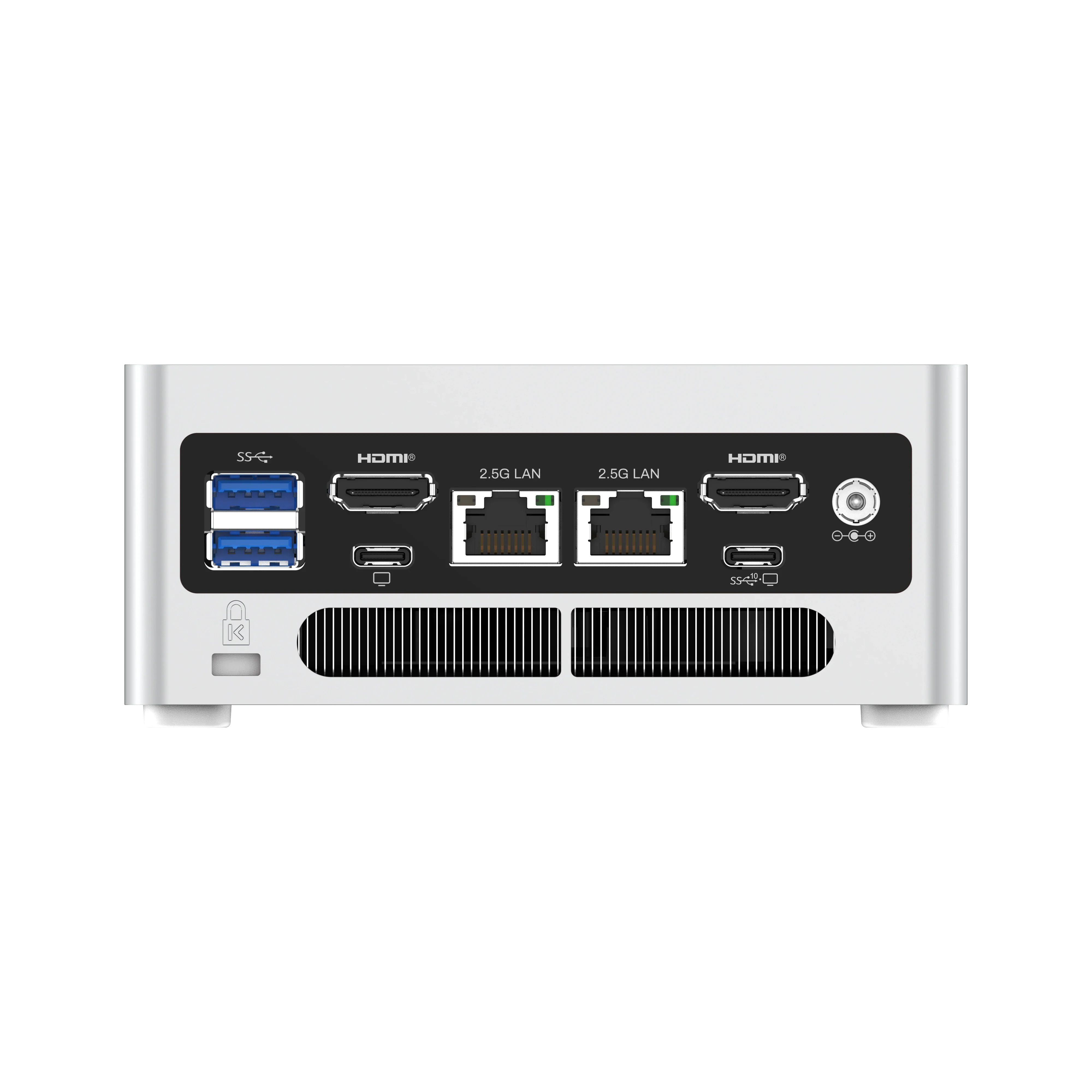

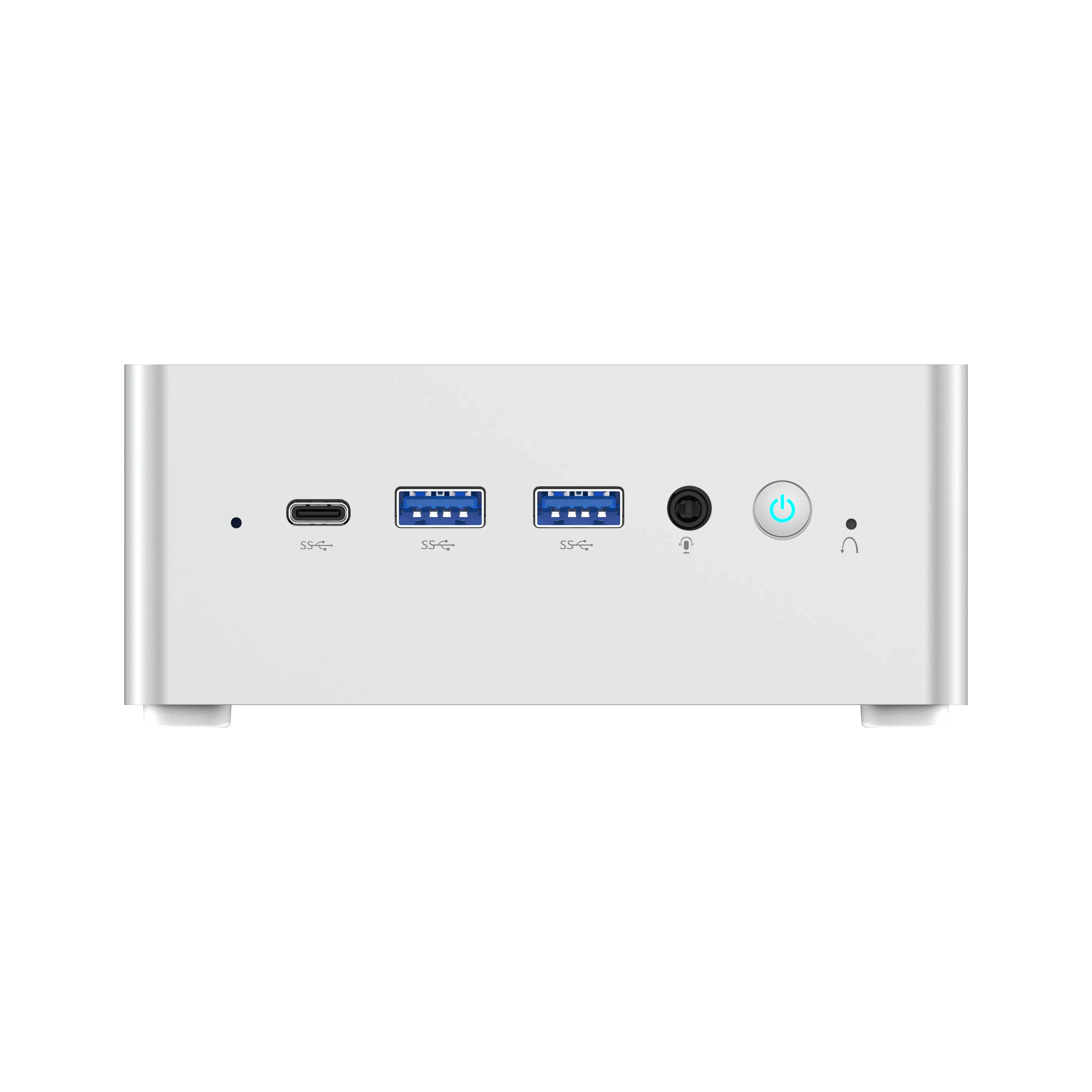

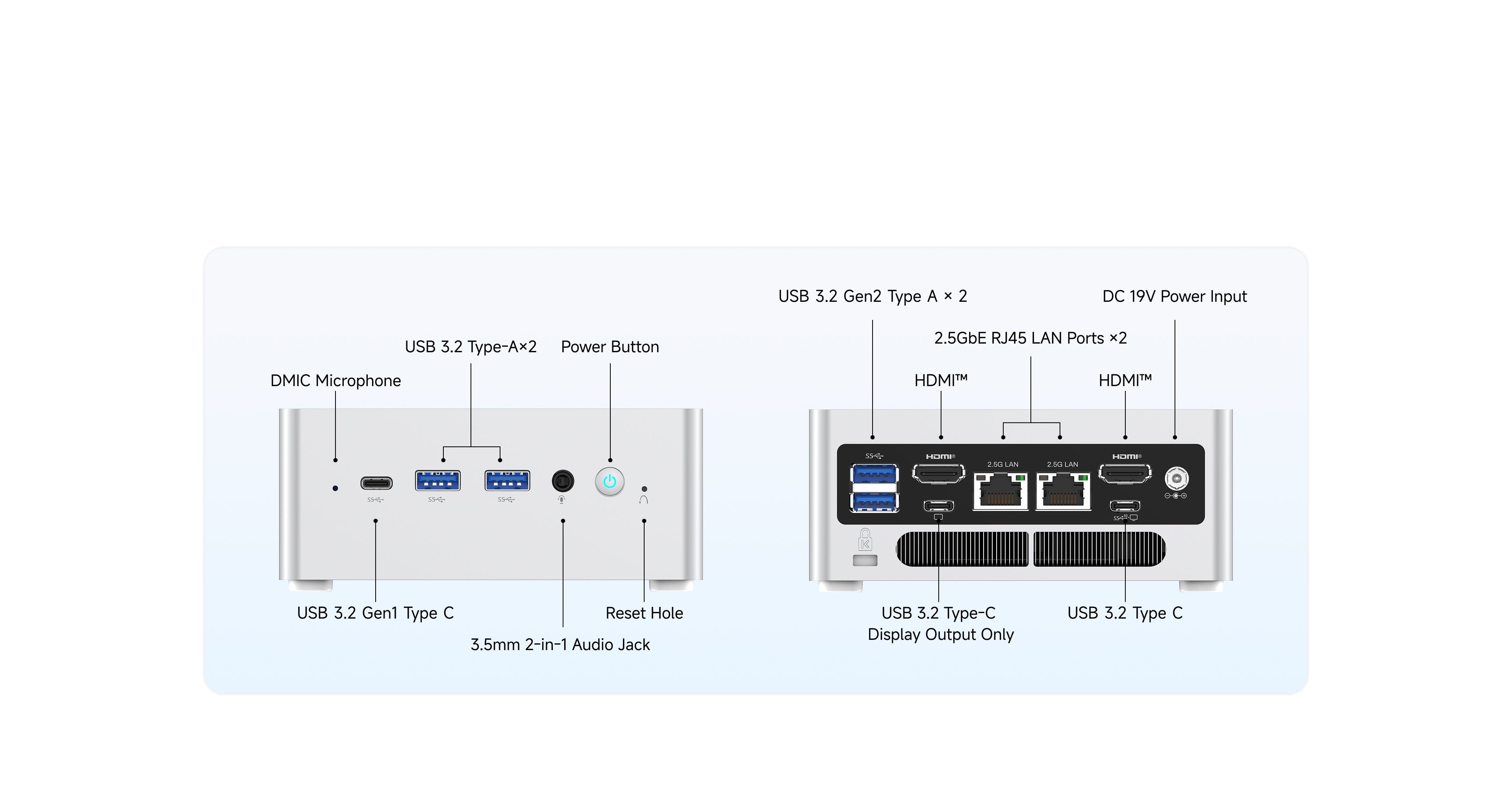

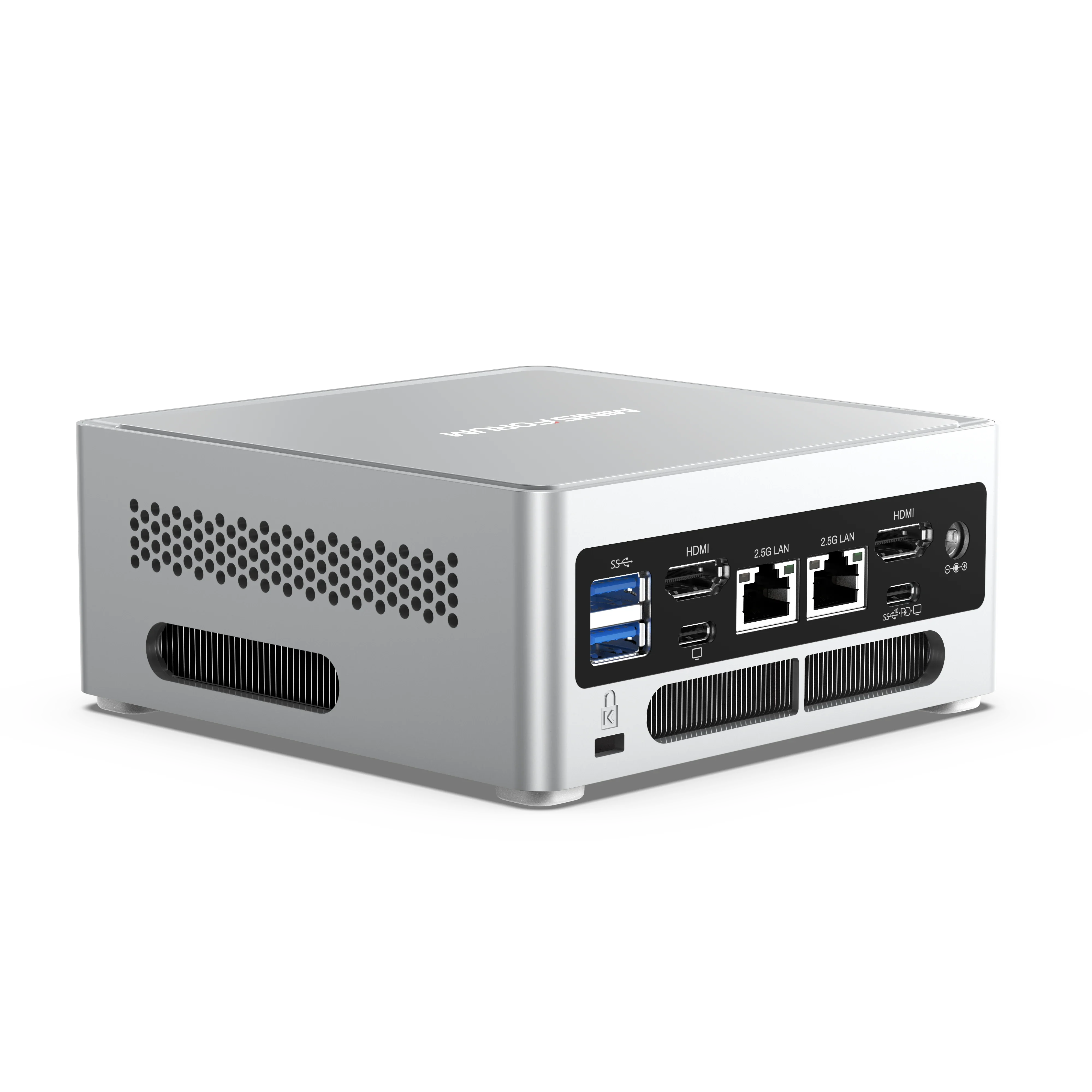

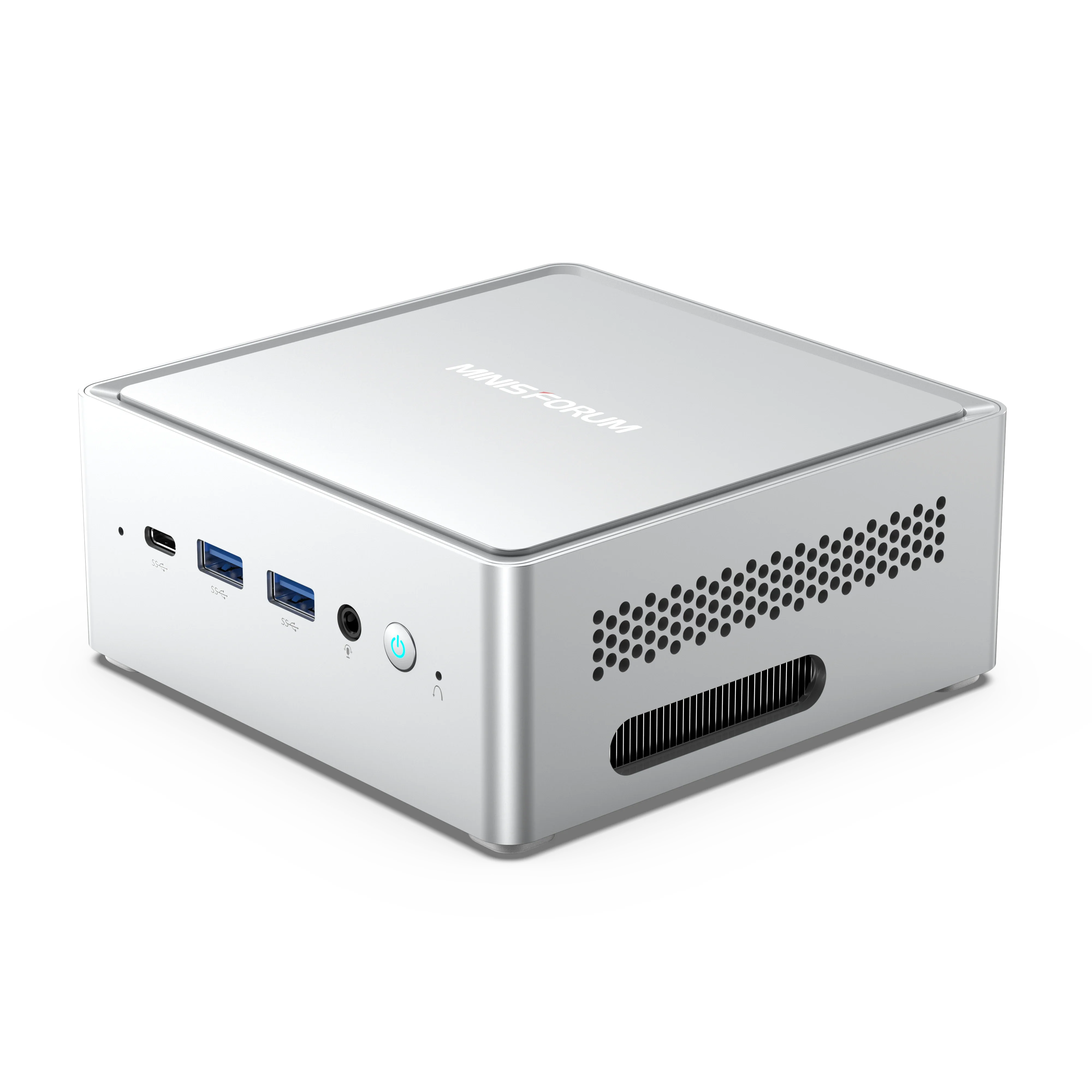

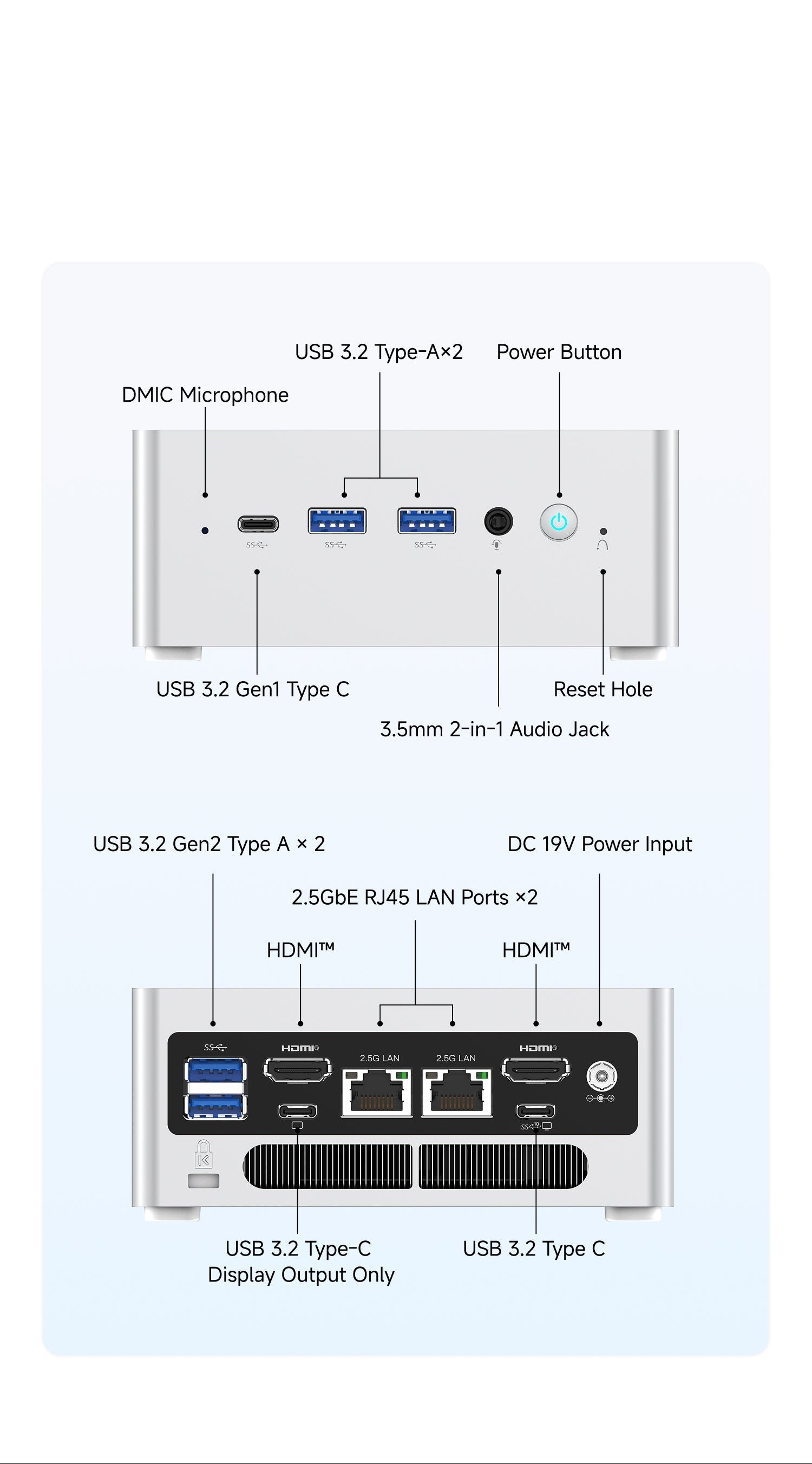

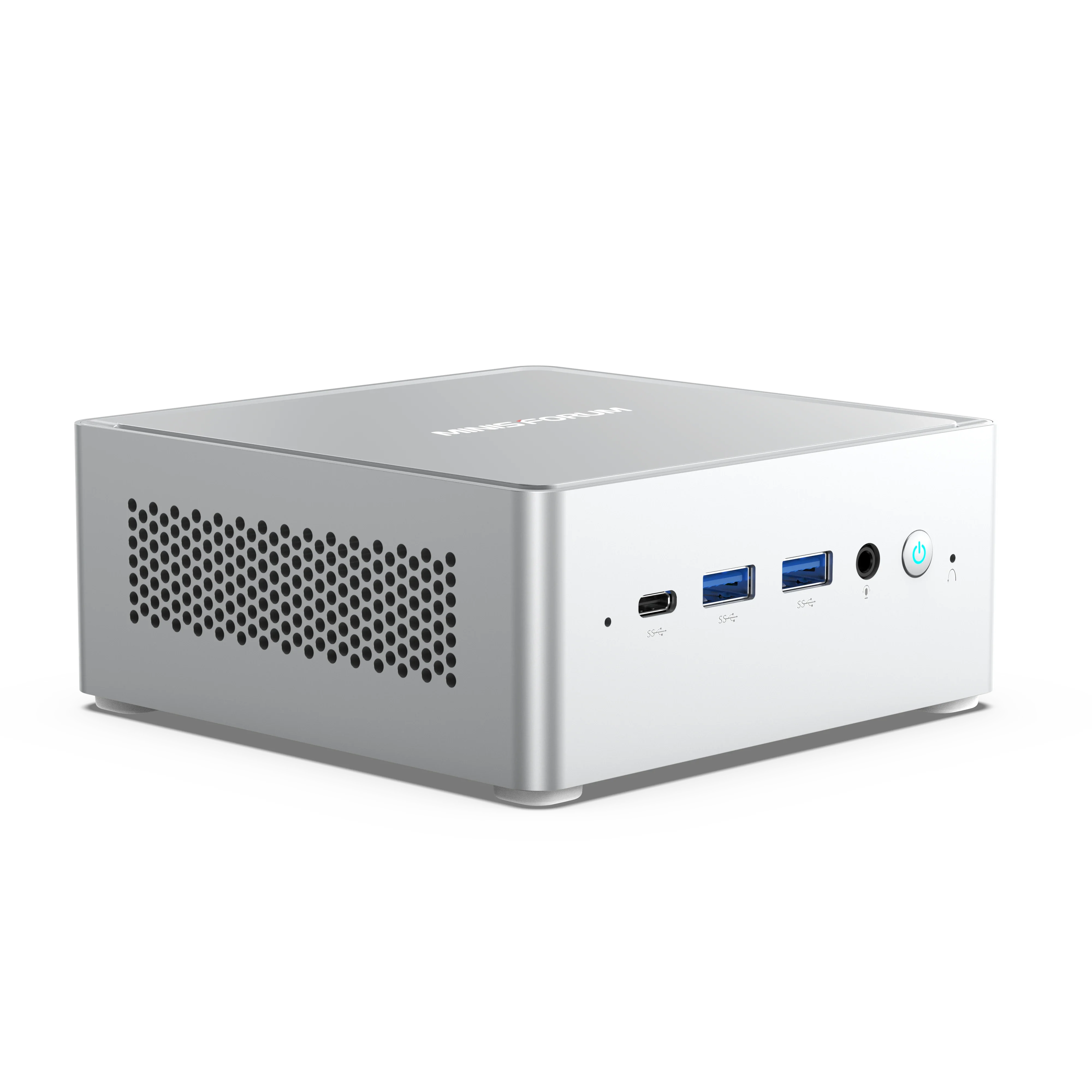

Front and Rear Port Layout
Package Contents
NAB9S
Power Adapter

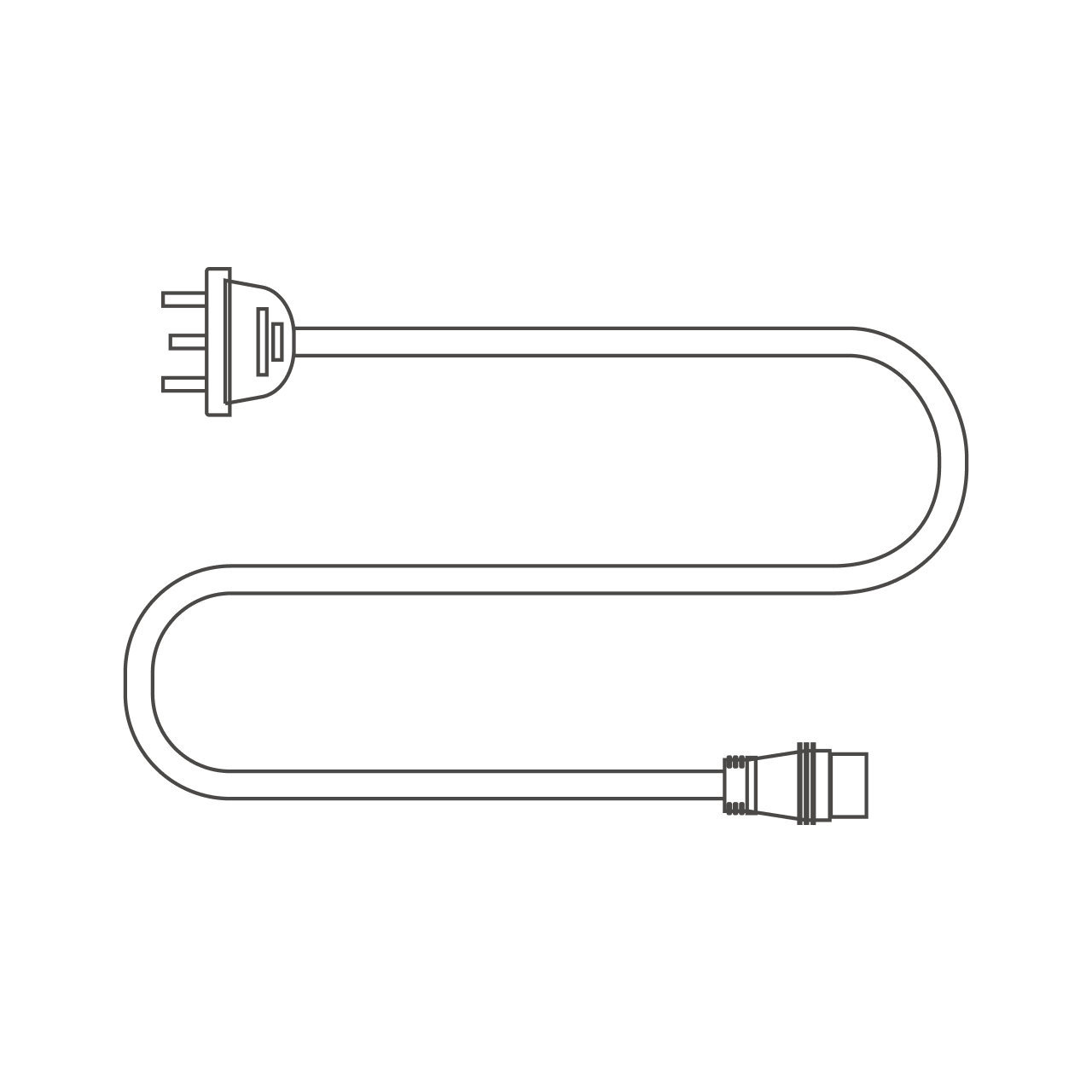

Power Cord
HDMI™ Cable

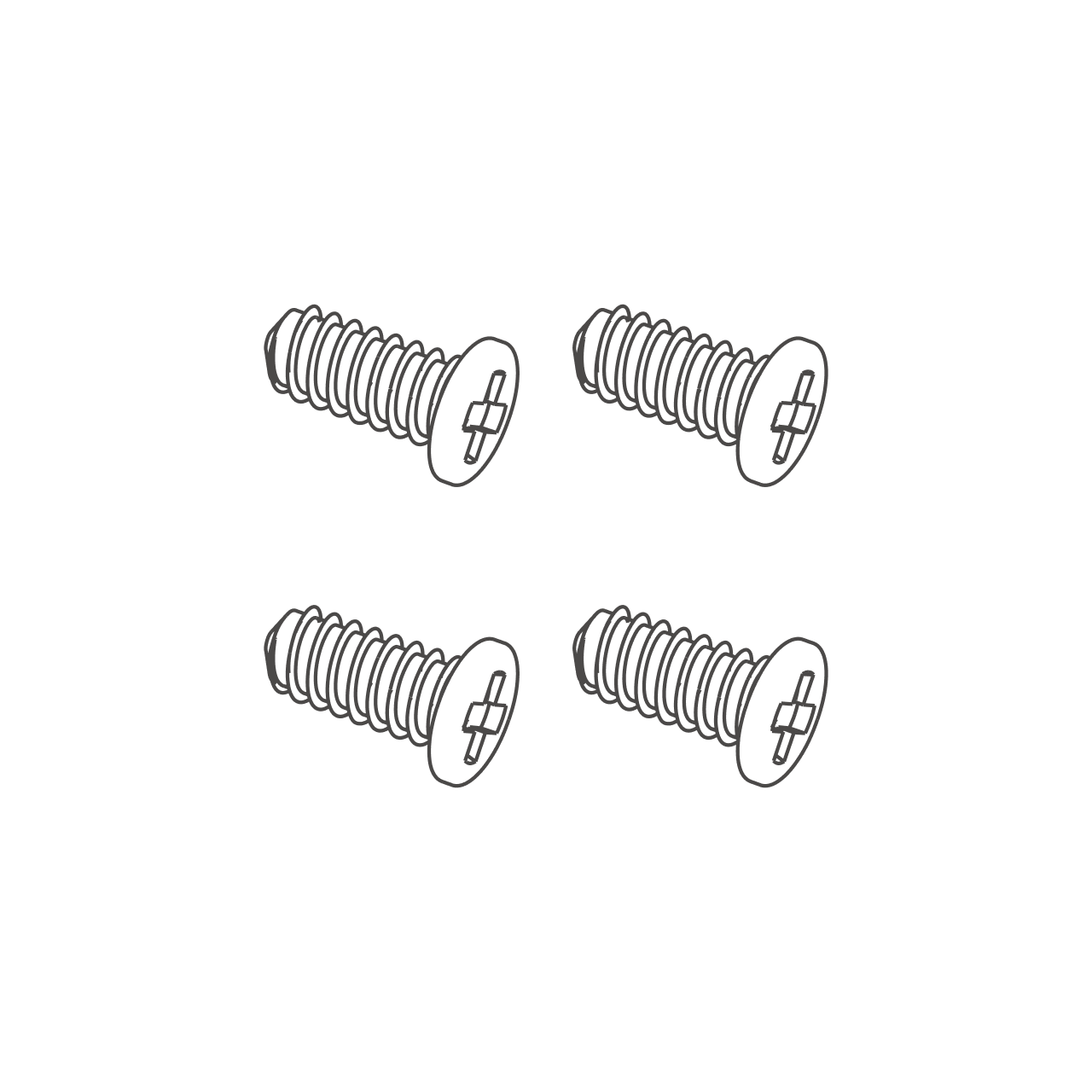

Mounting Screw Set
SATA Cable

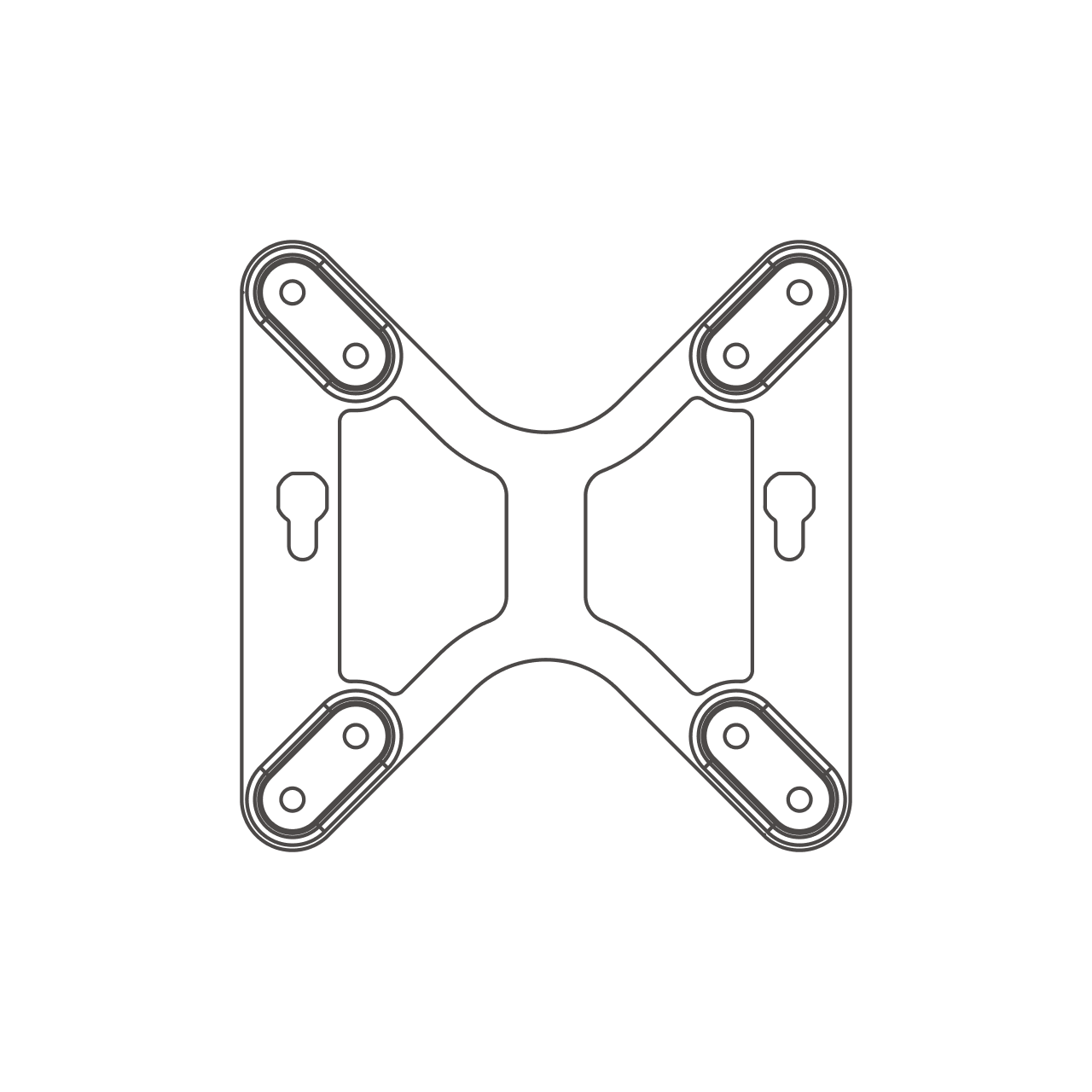

Wall-Mount Bracket
User Manual
NAB9S Specification
Intel® Core™ i9-13900HX, 24 Cores, 32 Threads, up to 5.4GHz
Intel® UHD Graphics
2 × SO-DIMM DDR4, up to 3200MHz, up to 32GB
1 × M.2 2280 NVMe SSD Slot, PCIe 4.0, up to 4TB
1 × 2.5-inch SATA HDD Slot, SATA 3.0
Wi-Fi 6E, Bluetooth 5.2
2 × HDMI™, up to 4K@60Hz
2 × USB-C, up to 4K@60Hz
2 × HDMI™
1 × 3.5mm 2-in-1 Audio Jack
1 × 3.5mm 2-in-1 Audio Jack
1 × USB 3.2 Gen1 Type-C, Data Transfer Only
1 × USB 3.2 Type-C, Alt DP Display Output and PD Power Output
1 × USB 3.2 Type-C, DP Display Output Only
4 × USB 3.2 Gen2 Type-A
1 × 3.5mm 2-in-1 Audio Jack
1 × DMIC Microphone
2 × HDMI™
2 × 2.5GbE LAN Ports, RJ45
1 × DC IN 19V Power Input
1 × Power Button
1 × Reset Hole
DC 19V/6.32A 120W
Supported
Windows 11
127 × 127.5 × 54.7 mm
0.57 kg
